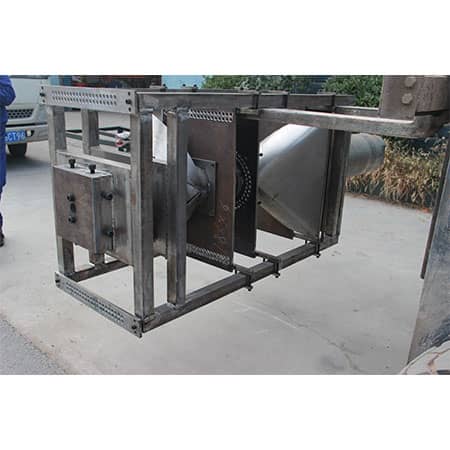

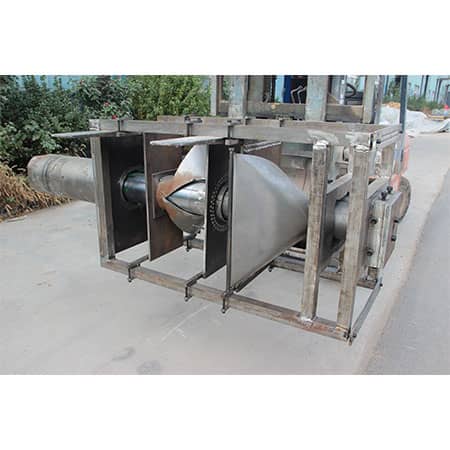

φ186*6mm FRP Tube Pultrusion Die: Precision Tooling for Large-Diameter Piping
Support large-scale composite manufacturing with this φ186*6mm FRP round tube pultrusion die, built from Cr12/H13 steel with hard chrome plating to deliver strong, corrosion-resistant industrial piping.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
High-Performance Tooling for Industrial Composite Pipe
Large-diameter FRP tubes remain essential to the 2026 industrial landscape, serving municipal water systems, chemical transport lines, and structural supports. The φ186*6mm FRP Round Tube Pultrusion Mould is a precision-engineered tool built to manage the substantial internal pressures and thermal loads that come with large-scale pultrusion. At Guangdong Haikuo, we coordinate the outer die and internal mandrel closely so wall thickness stays uniform and the finish stays mirror-smooth for efficient flow.
1. How the Round Tube Mould Works
Producing a 186mm diameter tube with a 6mm wall calls for more than a simple hollow die — it demands simultaneous, precise control of both the inner and outer surfaces:
- Internal Mandrel Support: The φ174mm internal mandrel must sit perfectly centered inside the φ186mm cavity. A reinforced bridge design in our molds keeps the mandrel from deflecting under high pulling loads.
- Thermal Gradient Control: With a 6mm wall, the exothermic heat peak needs careful management, so four-zone heating is used to cure the resin evenly from the inside out and avoid internal micro-cracks.
- Compaction Ratio: A 1-2 degree taper at the mold entrance gradually compresses the impregnated fibers, driving out air bubbles and building a dense structural matrix.
2. Premium Materials & Execution Standards
Large-diameter pultrusion puts significant stress on mold steel, so we offer several high-performance alloy options matched to production volume:
- Cr12 / Cr12MoV: The standard choice for high-volume glass fiber production, reaching HRC 58-62 after vacuum quenching.
- H13 (4Cr5MoSiV1): Well suited to high-temperature resins such as phenolics or epoxies, with strong resistance to thermal fatigue.
- Surface Finish (Mirror Polishing): Polishing the internal cavity to Ra 0.012 cuts friction significantly and delivers the “Class A” surface needed for chemical resistance.
3. φ186*6mm Mould Technical Parameters
| Parameter Specification | Standard Value | Performance Impact |
|---|---|---|
| Mold Bore Diameter | φ186.0 mm | Ensures outer diameter precision. |
| Mandrel Diameter | φ174.0 mm | Determines the 6mm wall thickness. |
| Concentricity | ≤ 0.05 mm | Ensures wall thickness uniformity. |
| Straightness | 0.02 mm / 1000 mm | Prevents bowing in long pipe sections. |
| Cavity Hardness | HRC 55 – 60 | Resists glass fiber abrasion. |
| Plating Thickness | 0.04 – 0.05 mm | Hard chrome layer for low friction. |
4. Optimized Performance Factors
- Resin Selection: Whether using Vinyl Ester for chemical plants or Polyurethane for structural strength, our molds are compatible with all major 2026 resin systems.
- Fiber Orientation: The mold design accommodates a mix of longitudinal rovings and continuous filament mats (CFM) to provide both tensile and hoop strength.
- Pulling Speed: Our high-smoothness cavities allow for 15-20% faster pulling speeds compared to standard industrial molds, maximizing your ROI.
10 Professional FAQs: Large-Diameter FRP Tube Tooling
Q1: “How do you ensure the 6mm wall thickness is consistent around the entire 186mm diameter?”
A: We use high-precision centering guides and a reinforced mandrel support system that minimizes “mandrel sag” during the pultrusion process.
Q2: “What is the expected life of the chrome plating for a φ186mm mold?”
A: With proper maintenance and non-abrasive resins, you can expect 60,000 to 80,000 meters of production before needing to re-plate.
Q3: “Can this mold handle Carbon Fiber pultrusion?”
A: Yes, but for carbon fiber, we recommend H13 steel with a specialized nitriding or DLC coating to handle the specific fiber properties.
Q4: “Is the mold heated by electricity or oil?”
A: This mold is compatible with both. We provide standard mounting holes for electric heating rods or internal channels for thermal oil circulation.
Q5: “Why is the straightness tolerance so tight (0.02mm)?”
A: In industrial piping, even a slight curve makes connecting long sections nearly impossible. Straightness is the key to leak-free jointing.
Q6: “How do you prevent the mandrel from sticking inside the cured tube?”
A: The mandrel features a precision “release taper” and is polished to a mirror finish. This, combined with high-quality internal release agents, ensures smooth extraction.
Q7: “Can I use this mold for both Polyester and Vinyl Ester resins?”
A: Yes. The hard chrome surface is chemically inert and highly resistant to the styrene in polyester and the aggressive chemistry of vinyl esters.
Q8: “What is the typical length of a φ186mm tube mold?”
A: For a tube of this size, we typically design the mold length between 900mm and 1200mm to ensure full curing at high pulling speeds.
Q9: “Do you provide a technical drawing for approval before manufacturing?”
A: Every custom mold project includes a comprehensive 3D CAD design review and a 2D engineering drawing for your final signature.
Q10: “How do we clean the mold after a production run?”
A: The mold should be cleaned while warm using a brass scraper and a suitable solvent, followed by a coating of protective rust-inhibitor oil.
Expert Large-Diameter Tooling Solutions
Scale up your composite production with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our engineering team specializes in the design and fabrication of world-class FRP Round Tube Pultrusion Moulds.
Optimize your production line today:
- Lead Engineering Consultant: Helena Wang
- Technical RFQ Email: [email protected]
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | round tube runs requiring maximum tool life and dimensional stability | Standard-volume round tube production | Low-volume prototyping or trial runs of round tube |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for φ186*6mm FRP Tube Pultrusion Mould: Precision Large-Diameter Tooling?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of φ186*6mm FRP Tube Pultrusion Mould: Precision Large-Diameter Tooling. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent φ186*6mm round tube geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on φ186*6mm FRP Tube Pultrusion Mould: Precision Large-Diameter Tooling?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the round tube shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with φ186*6mm FRP Tube Pultrusion Mould: Precision Large-Diameter Tooling?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can φ186*6mm FRP Tube Pultrusion Mould: Precision Large-Diameter Tooling be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is φ186*6mm FRP Tube Pultrusion Mould: Precision Large-Diameter Tooling compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
