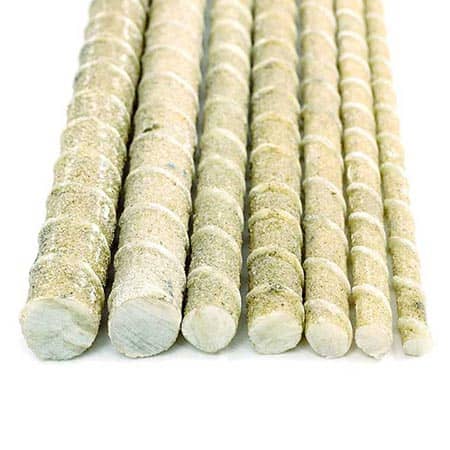

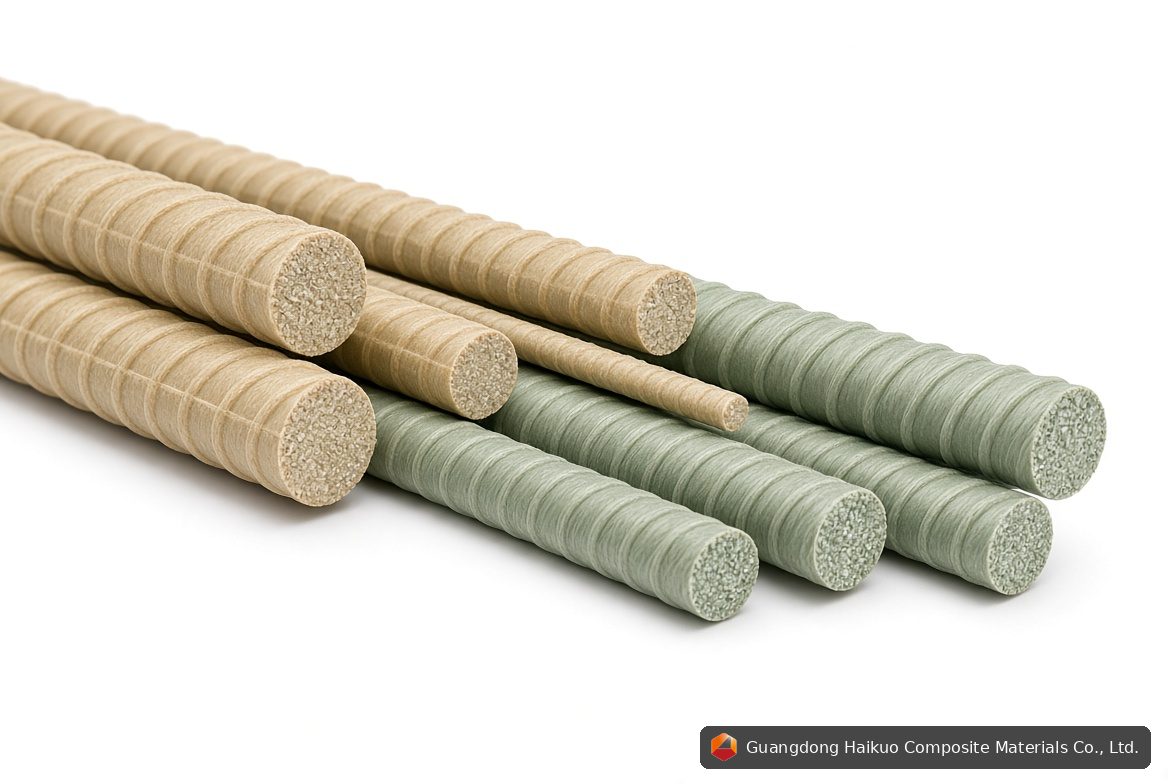

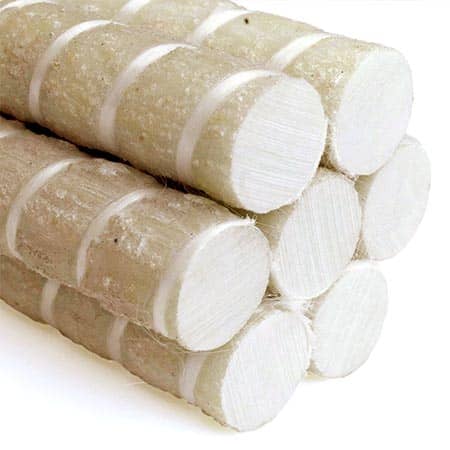

Fiberglass Reinforced Polymer (FRP) Rebar
Fiberglass reinforced polymer (FRP) rebar is a glass-fiber-reinforced polymer composite that serves as a durable, proven alternative to steel rebar in concrete construction.
Customized service:
Diameter Color Length
Winding method Surface Sandblasting Punch hole
DescribeSolutionsFAQContact us
Fiberglass Reinforced Polymer Rebar: Stronger, Lighter, More Durable Concrete Reinforcement
Fiberglass reinforced polymer (FRP) rebar is a composite of a polymer matrix reinforced with glass fibers, offering a durable, proven alternative to steel rebar in concrete applications. Its advantages over steel rebar include:
Higher tensile strength: at the same diameter, FRP rebar can withstand up to 2 times the tensile stress of steel rebar.
Lighter weight: in concrete flatwork it can be up to 7 times lighter than steel rebar, and up to 4 times lighter at the same diameter, cutting transportation, handling, and labor costs while boosting site productivity and safety.
Corrosion resistance: FRP rebar never rusts, unlike steel rebar, which can corrode and deteriorate from exposure to moisture, chemicals, or salt over time — enabling more durable, longer-lasting concrete structures that need less upkeep.
Non-conductivity: being electrically and thermally non-conductive, FRP rebar removes the risk of electrocution or fire hazards around electrical or magnetic equipment, and it limits the thermal expansion and contraction that can crack or spall concrete.
Where FRP Rebar Is Used
FRP rebar suits residential, commercial, and structural concrete work that needs reinforcement for shrinkage-crack control or load-bearing capacity, including:
· Parking lots
· Sidewalks
· Patios
· Pool decks
· Driveways
· Bridge decks
· Barriers
· Seawalls
· Balconies
· And more
FRP Rebar Performance and Parameters
The table below outlines typical fiberglass rebar properties per ASTM D7957 standards; actual values may vary by manufacturer and product.
| Bar Size | Nominal Diameter (mm) | Cross Sectional Area (mm²) | Ultimate Tensile Strength (MPa) | Ultimate Tensile Load (kN) | Modulus of Elasticity (GPa) |
| #2 | 6.4 | 32.2 | 1034 | 33.3 | 46.9 |
| #3 | 9.5 | 71.3 | 1034 | 73.7 | 46.9 |
| #4 | 12.7 | 127.6 | 1034 | 131.9 | 46.9 |
| #5 | 15.9 | 199.6 | 1034 | 206.3 | 46.9 |
| #6 | 19.1 | 287.0 | 1034 | 296.8 | 46.9 |
| #7 | 22.2 | 387.1 | 1034 | 400.0 | 46.9 |
| #8 | 25.4 | 508.0 | 1034 | 525.3 | 46.9 |
Installing FRP Rebar
Installation follows a process similar to steel rebar, adjusted for the material’s different properties. General guidelines include:
Use suitable tools for cutting, bending, and tying — diamond blades, mandrels, and plastic ties.
Follow the design specifications for spacing, cover depth, lap length, and similar details as set by the engineer or applicable code.
Avoid damaging the surface or core of the rebar while handling, storing, or installing it.
Keep it out of direct sunlight and high temperatures during storage and installation.
Conclusion
FRP rebar delivers a stronger, lighter, more durable reinforcement option with many benefits over steel rebar across a range of applications — a cost-effective, corrosion-resistant, non-conductive solution that improves the performance and longevity of concrete structures.
If FRP rebar suits your next project, contact us for more information and a quote. We are a leading FRP rebar supplier in China known for quality, reliability, and customer satisfaction, and we look forward to hearing from you.
Technical Summary & Engineering Insights
| Performance Factor | Haikuo FRP Rebar | Steel Rebar | Wood/Timber Support |
|---|---|---|---|
| Tensile Strength | Higher than equivalent steel | Good baseline | Low |
| Corrosion / Rust Resistance | Total immunity | Corrodes over time | Rots |
| Weight-to-Strength Ratio | Excellent | Moderate | Poor |
| Electrical Conductivity | None | Conductive | None |
| Design Lifespan in Harsh Environments | 50+ years | Reduced by corrosion | Short |
Targeted Product FAQ
Q1: What makes FRP rebar ‘proven’ rather than experimental?
A1: FRP rebar has been used in structural and marine concrete for over two decades, with design guidance published by major engineering bodies (e.g. ACI 440) and a long track record in bridges, seawalls, and parking structures worldwide.
Q2: Is FRP rebar brittle compared to steel?
A2: FRP rebar behaves linearly-elastically to failure rather than yielding like steel, so structural designs account for this difference — your engineer will size and detail the reinforcement accordingly, which is standard practice for FRP design.
Q3: Can you supply mill/test certificates with each order?
A3: Yes, documentation confirming compliance with our ISO 9001:2015 quality system is available — let us know what specific certification your project requires and we’ll confirm availability.
Q4: Do you supply both straight bars and pre-formed stirrups/bent shapes?
A4: Yes, bent shapes such as stirrups and hooks are produced to your drawing at the factory (FRP cannot be field-bent), while straight bars can also be cut to length on-site.
Q5: What quantities do you typically supply for export orders?
A5: Order sizes range from smaller trial/sample quantities up to full container loads — tell us your project’s total tonnage or bar count and we’ll quote accordingly.

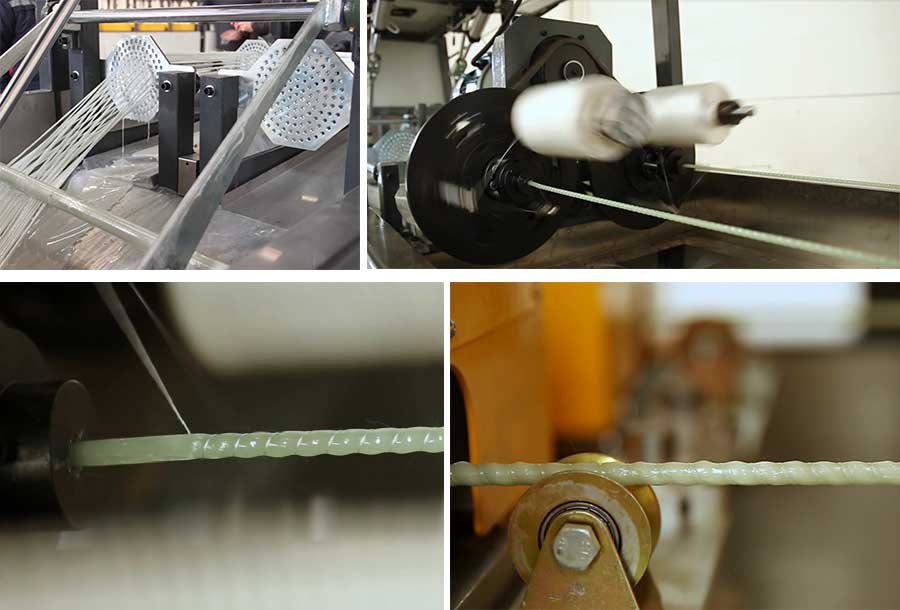

Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
