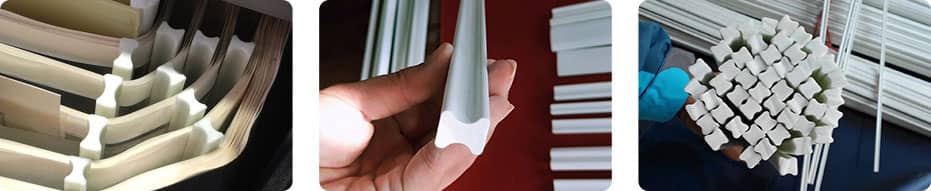

Haikuo’s FRP Dog Bone profiles — also known as fiberglass dog bone shapes or composite dovetail spacer blocks — represent top-tier electromechanical insulation technology built for the heavy power industry worldwide. Produced on our automated continuous thermal pultrusion lines, these shapes cross-link dense E-glass fiber yarns and multidirectional fabrics with high-temperature thermosetting resins such as epoxy, vinyl ester, or unsaturated polyester. The result is a profile with excellent flexural strength, strong dimensional stability, and top-tier dielectric performance.
In heavy-duty electrical equipment, standard polymer spacers or wooden wedges degrade quickly under continuous thermal load, moisture absorption, and electromagnetic vibration, which can lead to short-circuit failures. Haikuo’s fiberglass dog bone bars remove these risks entirely. With a precisely calibrated dog-bone cross-section, our insulating profiles serve as coil winding isolation supports, stator slot wedges, and mechanical dovetail spacer blocks that hold up under strong radial magnetic compression and shear forces in smart grid assemblies worldwide.
Electromechanical Advantages of Haikuo FRP Dog Bone Profiles
- Strong Dielectric Strength: High volume resistivity and breakdown-voltage limits provide 100% partial discharge protection near high-voltage grids.
- Class H Thermal Endurance: Engineered to keep its full mechanical rigidity and load capacity, without warping, at continuous operating temperatures above 180°C.
- High Shear and Bending Rigidity: Built to absorb dynamic torque, magnetic harmonic vibration, and continuous crushing pressure during demanding transformer short-circuit tests.
- Zero Moisture Absorption: 100% resistant to transformer oils, moisture condensation, and aggressive chemical vapors, which eliminates dielectric tracking leakage.
- Precise Dimensional Tolerances: Produced on precision thermal dies for millimeter accuracy on the dovetail interlocking edges, allowing smooth insertion into critical stator core slots.
Technical Insulation Specifications & Dimensions
The table below lists our standard dimensions and mechanical parameters, suited to high-power switchgear, motor stator manufacturing, and wholesale supply for dry-type transformer components. As a direct factory, we offer full customization of core width, height profile, resin class, flame-retardant rating (UL94 V-0 compliant), and cut-to-length sizing to match your engineering blueprints.
| Model Series | Head Width (W1 – mm) | Neck Width (W2 – mm) | Total Height (H – mm) | Dielectric Strength (KV/mm) |
|---|---|---|---|---|
| ZS-DB-1006 | 10.0 mm | 6.0 mm | 6.0 mm | ≥ 12.0 |
| ZS-DB-1408 | 14.0 mm | 8.0 mm | 8.0 mm | ≥ 14.0 |
| ZS-DB-2012 | 20.0 mm | 12.0 mm | 12.0 mm | ≥ 15.0 |
| ZS-DB-CUSTOM | Custom Dimensions | Bespoke Profiles | 4.0 – 30.0 mm | Engineered per Spec |
Electromechanical Applications & Insulation Systems
Thanks to their dimensional precision, high thermal-dielectric ratings, and torque endurance, Haikuo’s pultruded insulating dog bones are widely used across power networks globally:
- Dry-Type Transformer Assembly: Used as air duct spacers, low-voltage/high-voltage coil winding isolation barriers, and structural core clamping slats.
- Electric Motors & Generators: Serving as high-stiffness stator slot wedges, armature coil support bars, phase insulation barriers, and dynamic spacer bars.
- Switchgear & Control Enclosures: Used as arc-chute partition pillars, high-voltage busbar supports, insulating connection plates, and switchgear grids.
- On-Load Tap Changer (OLTC) Systems: Providing rigid, non-conductive framework rods, high-insulation structural sliders, and precise mechanical linkage components.
Quality Assurance & Dielectric Testing Standards
Every batch of Haikuo composite insulation profiles is verified in our quality control lab, including high-voltage breakdown analysis, barcol hardness testing, thermal weight-loss simulation at 200°C, and ASTM mechanical shear index validation — confirming defect-free electromechanical insulation even under the most demanding grid conditions.
Technical Summary & Engineering Insights
Executive Summary: Haikuo elite-tier FRP Dog Bone profiles and precision-molded fiberglass dovetail spacers are heavy-duty electrical insulating shapes engineered to deliver maximum dielectric strength and exceptional mechanical shear resistance for global dry-type transformers, heavy electric motors, and high-voltage switchgear grids. Fabricated via an automated continuous composite pultrusion line that tightly cross-links high-density E-glass fiber yarns with high-temperature epoxy or vinyl ester thermosetting resins, these rigid insulation bars easily withstand intense magnetic compression and continuous harmonic vibrations without structural warping or delamination. Designed to comfortably meet Class H thermal endurance (exceeding 180°C) and stringent UL94 V-0 flame retardant standards, they feature complete immunity to moisture absorption and transformer oil degradation, entirely preventing partial discharge and dielectric tracking failure. Available in micro-calibrated custom dimensions, these versatile slot wedges and coil winding isolation components serve as the definitive global standard for modern smart grid assemblies.
| Electromechanical Insulation Matrix | Haikuo FRP Dog Bone | Traditional Phenolic Cotton Rods | Basic Nylon / PVC Spacers |
|---|---|---|---|
| Dielectric Strength (Breakdown KV/mm) | Ultra-High (≥15 KV/mm; Zero tracking) | Moderate (~10 KV/mm) | Low (Prone to arc tracking breakdown) |
| Thermal Rating Compliance | Class H (180°C+ Continuous operation) | Class E/B (Carbonizes under intense heat) | Class A (Softens and warps at 90°C) |
| Short-Circuit Shear & Flex Rigidity | Elite Lamination Strength (≥350 Mpa) | Moderate (Prone to moisture delamination) | Extremely Poor (Deforms under load) |
| Transformer Oil & Moisture Immunity | 100% Inert (Zero absorption/dissolution) | Absorbs moisture (Swells and degrades) | Good resistance (But oil softens polymers) |
| Flame Retardant Performance | UL94 V-0 (Self-extinguishing matrix) | Flammable (Releases toxic smoke) | Variable (Melts and drips hazards) |
Targeted Product FAQ
Q1: How does utilizing an FRP Dog Bone profile prevent partial discharge and dielectric tracking failure in dry-type transformers?
A1: Partial discharge often triggers along organic insulation wedges due to moisture absorption or air voids inside the material matrix. Haikuo FRP Dog Bone segments are precision-pultruded using high-purity, cross-linked epoxy or vinyl ester systems under extreme thermal consolidation, resulting in a completely solid, void-free core with near-zero moisture absorption. This advanced composite profile provides a monumental volume resistivity and absolute tracking resistance index, preventing dielectric breakdown under intense voltage stresses and fitting perfectly within complex electrical layouts alongside our pultruded fiberglass profiles.
Q2: Can your fiberglass dovetail spacer blocks comfortably sustain continuous Class H operating temperatures?
A2: Yes. Traditional electrical spacers like nylon or phenolic boards soften, warp, or carbonize under continuous intense thermal cycles, leading to structural loose gaps. Our premium Fiberglass Dog Bone bars are custom-formulated to comfortably surpass Class H thermal resistance parameters (safely exceeding 180°C continuous operational loads). They maintain absolute cross-sectional geometry, high flexural modulus, and zero weight loss during high-temperature baking or prolonged full-load grid operations.
Q3: How do your insulating dog bone profiles perform against dynamic short-circuit mechanical shear forces inside heavy electric motors?
A3: When unexpected short-circuits occur, winding coils generate massive, violent radial magnetic thrusts that subject stator slot wedges to extreme compressive and shear forces. Haikuo composite insulation bars utilize high-density E-glass fiber yarns woven longitudinally with multi-directional mats, yielding a monumental lamination shear and bending rigidity exceeding 350 MPa. This robust composite grid effortlessly absorbs rapid dynamic torque and mechanical vibrations, securing the conductor coils firmly in place.
Q4: Are these composite dovetail spacers fully compatible with oil-immersed transformers and aggressive cooling fluids?
A4: Yes, absolutely. Standard industrial polymers tend to dissolve, soften, or leach chemical impurities that degrade the cooling properties of dielectric oils. Because our thermosetting polymer matrices are completely cured and chemically inert, our FRP Dog Bone shapes are entirely immune to transformer oil immersion, synthetic esters, and aggressive solvent splashes, ensuring 100% sterile performance over decades without compromising oil purity or insulation integrity.
Q5: What dimensional tolerances can your factory guarantee for custom interlocking stator core slots?
A5: Precision engineering is mandatory for modern electrical automation. Haikuo operates high-end continuous thermal pultrusion dies that maintain ultra-tight dimensional profiles within ±0.05mm on critical neck and head dimensions. We support complete wholesale customization regarding cross-sectional drawings, fire-retardant classes certified to UL94 V-0, and pre-cut customized lengths. Please contact our electromechanical engineering desk to align your assembly blueprints with our extensive portfolio of advanced insulating shapes and high-strength pultruded fiberglass profiles.
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
