How to Install FRP Crossarms
FRP Crossarm Installation Solution
The FRP crossarm is a composite crossarm used in power transmission, offering high strength, light weight, corrosion resistance, and good insulation performance. It’s produced mainly through one of two methods: filament winding or pultrusion. Filament winding suits round or conical crossarm shapes, while pultrusion is used for constant cross-section crossarms, whether round or polygonal.
Points to Check Before Installing an FRP Crossarm
Before mounting an FRP crossarm, keep the following in mind:
Inspect the crossarm’s appearance for defects such as damage, cracks, or deformation, replacing or repairing it if any are found.
Confirm the crossarm’s dimensions match the design requirements, adjusting or replacing it if they don’t.
Verify the crossarm’s electrical performance meets specification requirements, replacing or improving it otherwise.
Select appropriate installation tools and hardware — bolts, washers, nuts, torque wrenches, and the like — and steer clear of tools that could damage the crossarm, such as hammers or pliers.
Observe proper safety procedures, wear protective equipment, and guard against hazards such as electric shock or falls.
Steps for Installing an FRP Crossarm
The exact installation steps for an FRP crossarm can vary with voltage level and structural design, but they typically break down as follows:

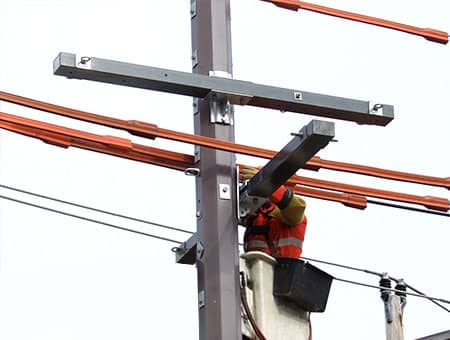

Attach the FRP crossarm to the pole or tower, securing it with bolts, washers, and nuts while keeping it symmetrical and balanced, and adjusting angle and height as needed.
Attach the insulator to the FRP crossarm, again securing it with bolts, washers, and nuts, keeping symmetry and balance in mind, and adjusting angle and height.
Connect the wire to the insulator using fittings or clamps, watching tension and sag, and adjusting position and direction accordingly.
Confirm that the crossarm and its accessories are firmly and reliably installed, that the work meets design and specification requirements, and that it doesn’t interfere with other equipment or lines nearby.
Carry out testing and acceptance checks — mechanical strength, electrical strength, grounding resistance, and similar tests — to confirm the crossarm and its accessories perform as expected.
Engineering Standards & Project ROI Insights
| Project Factor | FRP Crossarm | Wood Crossarm | Steel Crossarm |
|---|---|---|---|
| Weight | Lightweight | Moderate | Heavy |
| Insulation Performance | Good insulation properties | Some insulation, degrades wet | Conductive, needs separate insulators |
| Corrosion/Rot Resistance | Total immunity | Rots over time | Rusts, needs coating |
| Manufacturing Method Options | Filament winding or pultrusion, shape-dependent | Milled to shape | Formed/welded |
Project Implementation FAQ
Q1: What should be checked before installing an FRP crossarm?
Answer: Before installation, inspect the crossarm’s appearance for defects such as damage, cracks, or deformation, and address any issues found before mounting it on the pole.
Q2: What manufacturing methods are used to produce FRP crossarms?
Answer: Filament winding is used for round or conical crossarm shapes, while pultrusion is used for constant cross-section (round or polygonal) crossarms — the method depends on the required shape.
Q3: Why is FRP preferred over wood or steel for power transmission crossarms?
Answer: FRP crossarms combine high strength, light weight, corrosion resistance, and good insulation performance — advantages that address wood’s rot risk and steel’s conductivity and corrosion issues.
Q4: Does an FRP crossarm require special insulator hardware like steel does?
Answer: FRP’s own insulation performance reduces (though doesn’t necessarily eliminate) the need for the additional insulator hardware steel crossarms require — confirm specific requirements against your utility’s standards.
Q5: How long do FRP crossarms typically last in transmission line service?
Answer: Because they resist rot and corrosion, FRP crossarms typically achieve a longer maintenance-free service life than wood or unprotected steel crossarms in the same environment.
