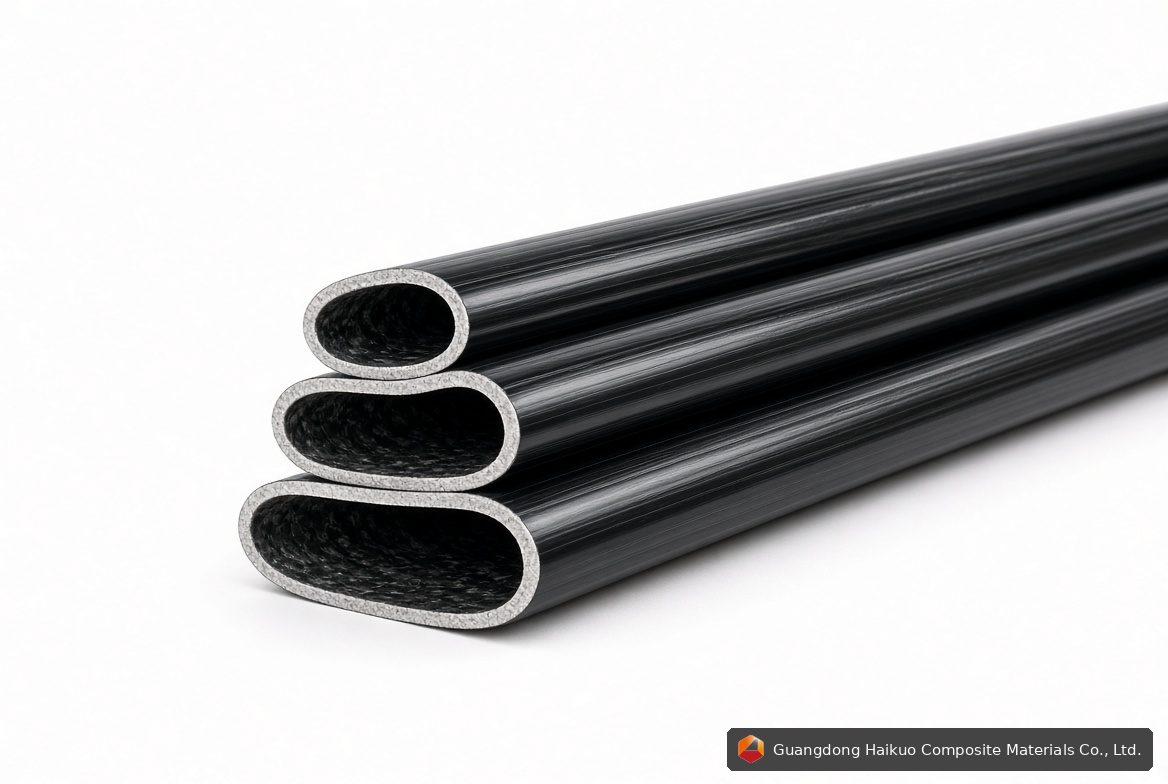

Standard round tubing can come up short in heavy industrial settings once loads become directional, non-uniform, or the installation space is tight. Guangdong Haikuo, a global supplier since 2022, meets that challenge with commercial-grade FRP oval tubes. Trading the round, concentric cross-section for a calibrated elliptic one gives these pultruded elements greater cross-sectional inertia along their primary loading plane, giving structural engineers and hardware OEMs worldwide an ergonomic, high-load alternative to metal or structural timber.

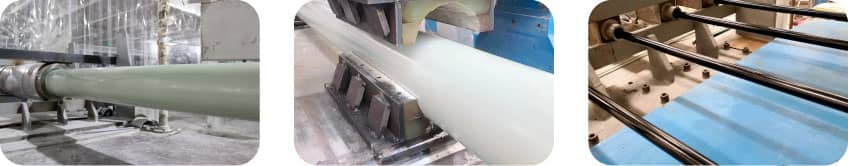

On the factory floor: our pultrusion lines producing high-strength oval profiles for engineering customers worldwide.
Shape Benefits: Getting the Most Directional Stiffness
Every commercial run of our oval fiberglass tubing is calculated for the best possible strength-to-weight performance. Wherever environmental forces, side loading, or leverage act mainly along one axial plane, the major axis of an FRP elliptic element carries high bending moments and resists buckling with minimal deflection, giving reliable structural performance even in exposed plant environments.
Key Applications & Structural Advantages
With high multi-axial strength, corrosion resistance, and full dielectric insulation, our pultruded FRP oval tubes fill important roles across heavy-duty supply chains worldwide:
- Heavy Infrastructure & Handrail Barriers (DIN EN 13706): Serve as structural handrails, balustrades, and walkway barriers wherever strict horizontal load limits and ergonomic hand-grip traction are required.
- Corrosive Process Heat Exchangers: Withstand persistent chemical attack from acids, alkalis, and salt water, while low thermal conductivity helps preserve heat retention margins in plant networks.
- Tight-Space Supports: The slim profile suits narrow installation gaps, working as structural framing, internal conduit, or framing sleeves where round pipe would exceed the available dimensional envelope.
- All-Weather Agricultural & Marine Frames: Holds up to continuous weathering, high humidity, and intense UV exposure without rotting, rusting, swelling, or losing mechanical properties.
Technical Parameters & Testing Benchmarks
Mechanical behavior and physical properties of our custom elliptic profiles are governed largely by the glass fiber volume matrix, cross-sectional thickness, and thermal curing control within our pultrusion dies. The table below is our standard technical reference for wholesale material evaluation:
| Engineering Property | Standard Testing Metric | Certified Technical Value Range |
|---|---|---|
| Material Density | Physical Volume Balance | 1.8 to 2.0 g/cm³ |
| Tensile Strength | ASTM D638 / ISO 527 Aligned | 300 MPa to 500 MPa |
| Flexural Strength | ASTM D790 / DIN EN ISO 178 Verified | 400 MPa to 600 MPa |
| Modulus of Elasticity | Axial Strain Gauge Testing | 20 GPa to 40 GPa |
| Impact Strength | Charpy/Izod Dynamic Test | 50 kJ/m² to 100 kJ/m² |
| Dielectric Strength | ASTM D149 / IEC 60060 Insulated Check | 10 kV/mm to 20 kV/mm |
| Electrical Resistivity | High-Voltage Isolation Baseline | 10¹⁰ to 10¹⁵ Ω·m |
Direct Factory Supply & Custom Quotes
Add bulk, direct-factory pricing to your industrial composite lineup through Guangdong Haikuo Composite Materials Co., Ltd. Our sales desk, overseen by international operations manager Helena Wang, covers overlapping EST, GMT, and CET business hours to manage engineering print reviews, third-party quality audits, and shipping logistics into the EU, the Americas, and APAC. Our manufacturing complex sits northeast of Xihuan Road and Beihuan Road, Xiaoli Village, Shi Wan Zhen, Boluo County, Huizhou City, Guangdong Province, China, giving quick access to major global deep-water shipping docks.
Technical Summary & Engineering Insights
Executive Procurement Summary: Certified under ISO 9001:2015, European CE markings, and verified through strict German DIN EN 13706 / North American ASTM mechanical baselines, Guangdong Haikuo’s pultruded FRP oval tubes deliver optimized directional stiffness for global industrial infrastructure. Utilizing an engineered elliptic cross-section, these premium composite profiles provide maximized moment of inertia along the primary loading axis, making them an excellent structural, splinter-free replacement for traditional wood and rust-prone steel in handrail systems, chemical plant platforms, and spatial-restricted framing support channels. Fully compatible with secondary automated CNC processing—including custom length cutting, slot-drilling, and direct pigment matching to corporate RAL codes—our production floor guarantees uniform material density. Our international sales desk operates across overlapping EST/GMT/CET time zones to deliver comprehensive engineering support and technical quotes within 2 hours.
| Engineering Metrics & Global Standards | Haikuo Pultruded FRP Oval Tube | Concentric Circular Fiberglass Tube | Standard Tubular Structural Steel |
|---|---|---|---|
| Directional Bending Resistance (Major Axis) | Maximum Efficiency (Maximized inertia along the loading plane resists higher dynamic leverage and bending moments) | Symmetrical Average (Distributes multi-axial forces evenly but lacks optimized deflection resistance on a primary targeted plane) | High Initial Strength (Subject to permanent plastic deformation and heavy weight penalties under load) |
| Spatial Adaptation Profiles | Excellent Slim Layout (Fits narrow architectural cavities and installation voids without losing structural rigidity) | Poor Space Adaptation (Requires equivalent wide concentric clearance dimensions in all spatial directions) | Variable Adaptation (Difficult to fabricate in thin-walled elliptical sections without structural stress concentrations) |
| Ergonomic Grip & Handrail Comfort | Premium Hand Grip (Smooth wide flat surface matches natural palm closure; ideal for safety enclosures) | Moderate Grip (Standard industrial interface; high localized palm strain over continuous pressure) | Poor Comfort (Requires thick anti-corrosion coatings; feels extremely cold/hot under severe seasonal weathering) |
| Dielectric Shielding Safety (ASTM D149) | 100% Non-Conductive Core (High insulation values; completely safe against hazardous live-wire contacts) | 100% Non-Conductive Core (Excellent insulated parameters; functions safely across electronic environments) | Critical Hazard (Highly conductive profile; introduces major arc-over risks in utility areas) |
| Flexural Compliance (DIN EN ISO 178) | Exceeds European structural parameters; zero brittle fiber fractures under high torque load | Meets Basic Benchmarks (Uniform bending modulus; less optimized for aggressive side force distribution) | Standard Grade (Meets basic generic industrial metallurgical standards and specifications only) |
Targeted Product FAQ
Q1: How does the geometric design of Guangdong Haikuo’s FRP oval tubes improve bending resistance compared to standard circular profiles?
A: Engineered as a non-axisymmetric structural element, our pultruded elliptic composite pipes distribute glass fibers primarily along the major axis plane. This specialized configuration dramatically increases the structural moment of inertia along the targeted plane of loading. In heavy civil infrastructure, architectural handrail systems, and horizontal support grids where environmental forces or weight acts on a single direction, this oval shape minimizes mechanical deflections and eliminates buckling much more efficiently than a traditional concentric pipe of the same material mass.
Q2: Do your factory’s custom oval profiles meet strict Western European infrastructure baselines such as DIN EN 13706?
A: Yes, certainly. Every continuous pultrusion run passing through our automated manufacturing line complies with the European CE marking directives and aligns fully with German DIN EN 13706 specifications for structural composite materials. If your technical team is executing industrial walkway barriers, protective fencing, or spatial-restricted support channels across Central and Western Europe, you can confidently integrate our high-strength Fiberglass Tube catalog solutions to satisfy strict regional compliance audits and streamline local import clearances.
Q3: Can these pultruded oval composite profiles withstand extreme seasonal weathering and direct chemical corrosion without surface degradation?
A: Absolutely. To counter aggressive environmental aging, we integrate a high-purity polyester surfacing veil into the outermost layer during the continuous pultrusion die extraction process. This creates a dense, resin-rich barrier that fully encapsulates the internal structural glass filaments. Rigorously verified under North American ASTM G154 accelerated UV and weathering standards, this protective exterior ensures our elliptic tubes are completely immune to chemical oxidation, coastal salt spray, and blistering heat, preventing fiber blooming or cracking throughout its operational lifecycle.
Q4: How does Guangdong Haikuo manage technical communication and engineering timelines for high-volume B2B contract procurement across multi-timezone markets?
A: Managed from our global operations headquarters in Huizhou, Guangdong, China, our international export desk runs a proactive multi-shift schedule. By structuring our working timelines to maintain continuous overlapping business hours with North American EST, Greenwich Mean Time GMT, and Central European Time CET, our veteran engineering specialists provide official commercial quotes, custom blueprint cross-checks, and technical material test documentation within 2 hours of receiving your initial B2B request.
Q5: What secondary CNC operations can your factory perform to prepare custom elliptic sleeves for automated metal ferrule assembly lines?
A: Guangdong Haikuo features a fully equipped secondary mechanical workshop right next to our primary pultrusion line floor. We supply major hardware brands and industrial manufacturers with precision component preparation, supporting automated CNC precise cutting to length, cross-axis slot-drilling, and end-notching tailored to your exact metal ferrule assembly parameters. Furthermore, our computer-controlled chemical mixing lines allow us to mix and inject custom pigments across any standard RAL code required by your corporate branding lines.
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
