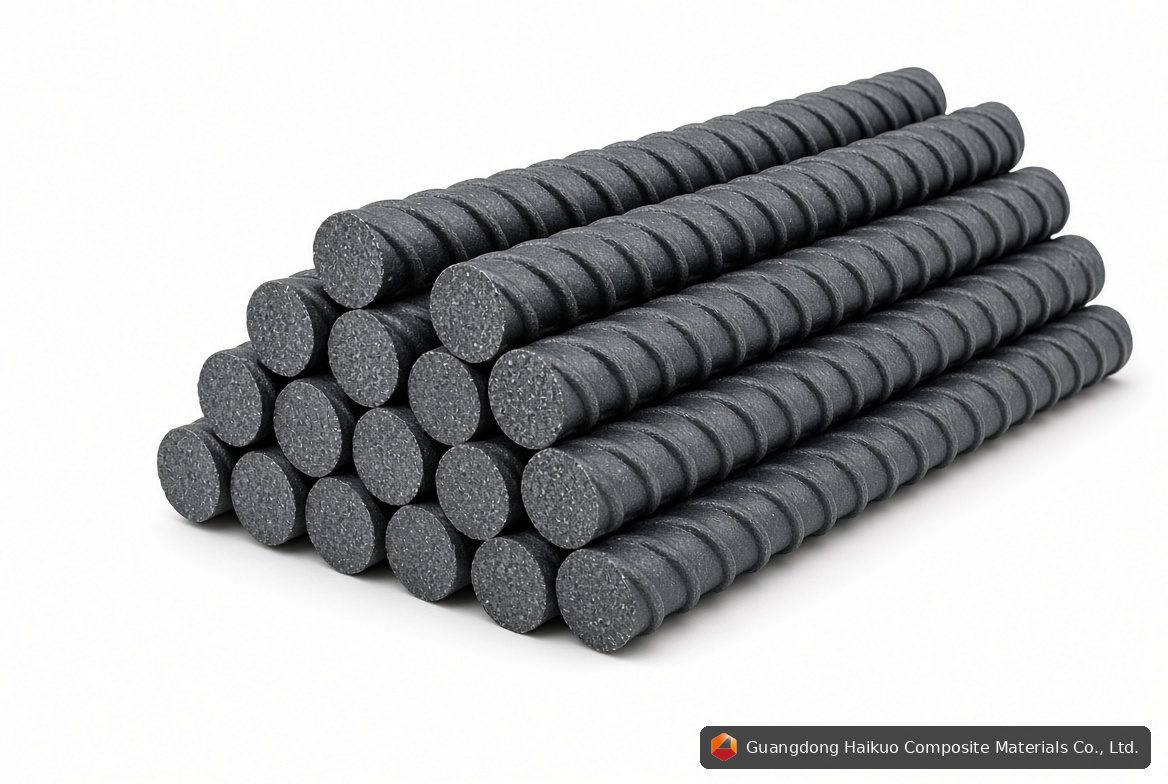

Basalt Fiber Concrete Reinforcement

Basalt fiber reinforcement offers steel-like strength and stiffness at a fraction of the weight, with far better resistance to corrosion, fire, and seismic damage.

Customized service:

Diameter Color Length
Winding method Surface Sandblasting Punch hole

Online Service Get Quote

Describe Solutions FAQ Contact us

Steel has anchored construction for decades thanks to its strength and durability, yet its bulk and vulnerability to corrosion remain persistent drawbacks. Basalt fiber reinforcement has emerged as a promising alternative, matching steel’s strength and stiffness while weighing less, resisting corrosion better, and adding extra safety margin in fire or seismic events.

Gfrp rebar machine

Key Benefits

Basalt fiber reinforcement is produced by melting basalt rock and extruding it into fine filaments, which are then woven into fabric, mat, or roving and bound together with a compatible resin to form composite structures. The result is a material with excellent mechanical properties — high tensile strength, stiffness, and fatigue resistance — suited to a broad range of construction, transportation, and aerospace applications.

Beyond its mechanical performance, basalt fiber reinforcement brings several further advantages over conventional reinforcement materials:

– Lower weight: basalt fiber reinforcement weighs roughly 1/3 as much as steel, which makes it easier to handle, transport, and install, and reduces the overall weight of the structure.
– Better corrosion resistance: basalt fibers withstand most chemicals and environmental exposures — moisture, UV radiation, acidic or alkaline solutions — that would corrode and degrade steel.
– High thermal stability: basalt fibers tolerate temperatures up to 800°C without melting or losing strength, making them well suited to structures exposed to fire or high heat.
– Improved safety: during fire or seismic events, basalt fiber reinforcement releases no toxic fumes and produces no sharp debris, lowering the risk of injury or damage to occupants and the surrounding area.

Typical Applications

Basalt fiber reinforcement suits a range of construction applications, including:

– Reinforcing concrete structures: basalt fibers serve as reinforcement bars, grids, or strips within concrete, raising its tensile strength and durability while reducing weight and permeability.
– Strengthening bridges and tunnels: it can retrofit or reinforce existing bridges and tunnels, improving their resilience and extending their service life.
– Building composite structures: combined with other composite materials such as epoxy or resin, basalt fibers form stronger, lighter composite panels, beams, or pipes.

Performance Data

Product Name	Basalt Fiber Reinforcement
Composition	Basalt fibers and compatible binder
Tensile Strength	1500-6000 MPa
Young’s Modulus	80-110 GPa
Ultimate Strain	2-3%
Fatigue Resistance	10^7-10^8 cycles
Density	2.8 g/cm^3
Thermal Conductivity	0.06-0.08 W/mK
Temperature Resistance	400-800°C
Corrosion Resistance	Excellent
Recyclability	Fully recyclable
Health and Safety	No toxic fumes or debris in case of fire or seismic activity

Conclusion

Basalt fiber reinforcement offers a reliable, sustainable path forward for construction, combining several advantages over traditional reinforcement materials. Its strong mechanical properties, light weight, and high resistance to corrosion and temperature make it a fitting choice across many construction applications. Builders who adopt basalt fiber reinforcement can raise the safety, durability, and efficiency of their structures while lowering their environmental footprint.

Technical Summary & Engineering Insights

Executive Summary: Haikuo Basalt Fiber Reinforcement offers steel-like strength and stiffness in a lighter, corrosion-immune package — a natural-mineral-based composite alternative that also improves fire and seismic safety compared to traditional steel reinforcement.

Performance Factor	Haikuo Basalt Fiber Reinforcement	Steel Reinforcement	Glass Fiber (GFRP) Rebar
Corrosion Resistance	Complete immunity	Corrodes, causes spalling	Complete immunity
Weight	Significantly lighter than steel	Heavy	Light
Fire / High-Temperature Performance	Higher heat tolerance than glass fiber	Loses strength at high temp, but non-combustible	Lower heat tolerance than basalt
Seismic Safety (weight reduction benefit)	Improved, lighter structure	Baseline	Improved
Raw Material Source	Natural volcanic rock	Mined ore, energy-intensive processing	Processed silica glass

Targeted Product FAQ

Q1: What exactly is basalt fiber, and how does it differ from glass fiber?

A1: Basalt fiber is made by melting natural volcanic basalt rock and drawing it into continuous filaments — no chemical additives are needed. Compared to glass fiber, it typically offers higher temperature resistance and slightly higher strength, at a somewhat higher material cost.

Q2: Is basalt fiber reinforcement suitable for seismic zones?

A2: Yes — its high strength-to-weight ratio reduces the overall mass of reinforced elements, which is beneficial for seismic performance, though final structural design should always be confirmed with your project’s structural engineer.

Q3: How does basalt fiber reinforcement perform in fire conditions?

A3: Basalt fiber has a higher working temperature tolerance than standard E-glass fiber, making it a strong choice for applications with elevated fire-safety requirements — share your project’s fire rating and we can advise further.

Q4: What forms is basalt fiber reinforcement available in?

A4: We supply it as pultruded rebar and reinforcement profiles similar to our GFRP rebar range — see the Customized Service options above for diameter, length, and surface finish.

Q5: Is basalt fiber reinforcement more expensive than glass fiber rebar?

A5: It typically carries a moderate price premium over standard GFRP rebar due to raw material sourcing, but remains far more cost-effective over the structure’s lifetime than steel in corrosive or seismic-sensitive applications.
