Redefining Safety: The Engineering Behind FRP Ladder Rungs
By 2026, industrial safety standards had moved past simple durability toward “active protection”, and FRP/GRP ladder rungs (Fiberglass Reinforced Plastic) sit at the center of that shift. Where traditional steel rungs rust and aluminum rungs conduct electricity, pultruded fiberglass rungs combine chemical immunity with electrical insulation in a way that can be life-saving. At Guangdong Haikuo, advanced resin matrices go into every rung, so each step in your facility stays secure.
1. Three Layers of Protection
From saltwater offshore rigs to acidic chemical tanks, modern industrial environments call for rungs that hold up under multi-axis stress. Our custom FRP rungs deliver three critical layers of protection:
- Electrical Neutrality (Dielectric Safety): A high dielectric strength removes the risk of flashover in substations or during live-line utility work.
- Permanent Slip Resistance: Specialized quartz grit or micro-grooved textures are integrated directly into the pultrusion process, so unlike adhesive tapes, the anti-slip surface is part of the structural matrix and won’t peel off.
- Corrosion Immunity: Resistance to over 100 industrial chemicals, including H2SO4, HCl, and constant salt spray, keeps the ladder’s integrity from being compromised by “hidden” internal rust.
2. 2026 Technical Specifications and Load Capacity
| Property | Haikuo FRP Rung (Premium) | Stainless Steel (316) |
|---|---|---|
| Density | 1.8 – 2.0 g/cm³ (Lightweight) | 8.0 g/cm³ (Heavy) |
| Conductivity | Non-Conductive (Insulator) | Highly Conductive |
| Slip Resistance (COF) | > 0.8 (Grit Surface) | < 0.4 (Smooth/Ribbed) |
| Tensile Strength | 350 – 550 MPa | 515 MPa |
| Life Expectancy | 50+ Years (Zero Maintenance) | 20-25 Years (Subject to pitting) |
3. Where These Rungs Are Used
I. Chemical & Wastewater Treatment
Where moisture and corrosive gases are a constant presence in tanks, GRP rungs hold off structural failure. Low thermal conductivity also keeps them comfortable to the touch in both extreme heat and sub-zero conditions.
II. Power Utilities & Telecommunications
Only FRP meets the non-conductive requirements for access ladders in high-voltage zones. Our rungs are tested for dielectric consistency to guard against arc tracking.
III. Marine & Offshore Platforms
Metal and saltwater don’t mix well. FRP ladder rungs resist “salt-creep” and pitting, holding their safety rating on offshore rigs and coastal infrastructure without periodic re-galvanizing.
4. Customization Options for 2026 Projects

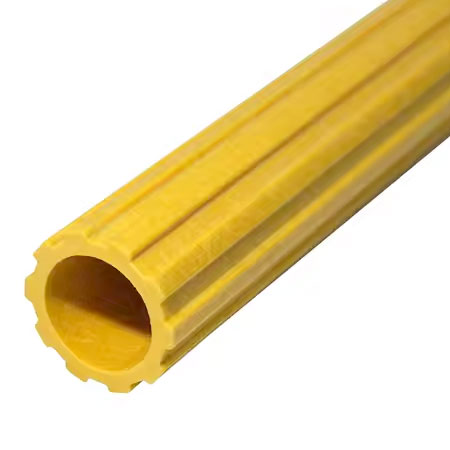

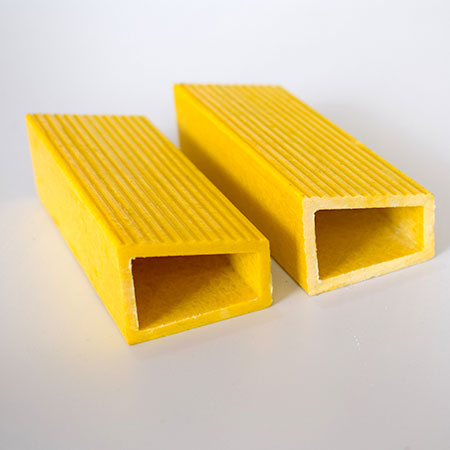

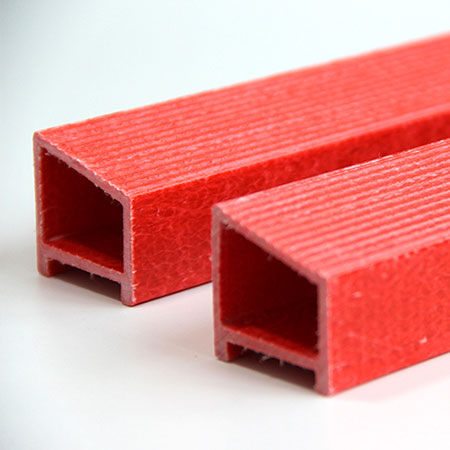

- Shape Profiles: Round, square, or “dogbone” profiles are available depending on the ergonomic and load requirements of your ladder system.
- Resin Matrix: Polyester suits general use, Vinyl Ester handles extreme chemical exposure, and Phenolic offers maximum fire resistance.
- High-Visibility Colors: Standard “Safety Yellow” covers most visibility needs, with custom colors available to match corporate branding.
10 FAQs on Choosing the Right Ladder Rungs
Q1: “Do FRP rungs meet OSHA load requirements?”
A: Yes — they’re engineered to exceed the 250 lb (114 kg) concentrated load requirement, and lab testing has shown them supporting over 1,000 lbs.
Q2: “What keeps the anti-slip grit from wearing off?”
A: A co-pultrusion process embeds the grit into the resin before it cures, making it a permanent part of the rung’s surface.
Q3: “Can FRP rungs handle sub-zero Arctic conditions?”
A: Unlike PVC, FRP doesn’t turn brittle in the cold — it holds its impact strength down to -50°C.
Q4: “Are they fire-resistant enough for refinery use?”
A: Yes — flame retardants can be added to meet ASTM E84 Class 1 or UL 94-V0 fire safety ratings.
Q5: “How are rungs attached to the ladder side-rails?”
A: They’re typically bonded with high-strength structural adhesive, then mechanically pinned for a redundant, fail-safe connection.
Q6: “Is the yellow color UV-stable?”
A: High-grade UV inhibitors and a protective surface veil prevent “sun-bleaching,” keeping the safety color vibrant for decades.
Q7: “Round rungs or square — which is better?”
A: Round rungs grip more ergonomically, while square or D-shaped rungs give a larger surface area for foot stability; both are available.
Q8: “Do these rungs need earthing or grounding?”
A: No — being non-conductive, they need no grounding, which simplifies installation in electrical substations.
Q9: “Are custom lengths available for wide industrial ladders?”
A: Yes — our pultrusion process allows rungs to be cut to any length, from 300mm to over 2000mm, for specialized access platforms.
Q10: “How should they be cleaned in a food-processing environment?”
A: FRP rungs can be high-pressure washed with industrial detergents; being non-porous, they don’t harbor bacteria.
Secure Your Vertical Access
Industrial safety isn’t the place to cut corners. Partner with Guangdong Haikuo Composite Materials Co., Ltd. for engineered FRP/GRP ladder rungs built to last. Led by Helena Wang, our team backs safety infrastructure projects worldwide with technical support.
Request a custom quote for your safety project:
- Safety Solutions Director: Helena Wang
- Direct Engineering Email: [email protected]
- Global WhatsApp: +86 189 5198 8522
Technical Summary & Engineering Insights
| Performance Factor | Haikuo FRP Ladder Rungs | Steel Ladder Rungs | Aluminum Ladder Rungs |
|---|---|---|---|
| Electrical Conductivity | None — safe near live electrical equipment | Conductive | Conductive |
| Corrosion Resistance | Total immunity | Rusts, needs coating | Resists rust, can corrode/pit |
| Slip Resistance | Advanced anti-slip surface | Can become slick with rust/oil | Can become slick when wet |
| Weight | Lightweight | Heavy | Light |
| Suitability for Chemical/Offshore Environments | Excellent | Poor without coating | Moderate |
Targeted Product FAQ
Q1: Why are non-conductive ladder rungs important for power utility work?
A1: Non-conductive FRP rungs eliminate the electrocution risk that steel and aluminum rungs pose near live electrical equipment — a critical safety requirement for power utility and substation work.
Q2: What makes the anti-slip surface effective in wet or oily conditions?
A2: Our rungs use an advanced textured surface engineered to maintain grip even in wet, oily, or chemically contaminated industrial conditions, unlike smooth metal rungs that become slick.
Q3: What sizes and cross-sections are available?
A3: Thickness, color, size, cut length, and punch-hole placement are customizable — see the Customized Service options above or send us your ladder specification.
Q4: Are these rungs suitable for offshore platform ladders?
A4: Yes, their corrosion immunity and non-conductivity make them a strong fit for offshore rig ladders and walkways exposed to constant salt spray.
Q5: Can existing steel ladders be retrofitted with FRP rungs?
A5: In many cases, yes — let us know your existing ladder’s rung spacing and mounting method and we can advise on retrofit compatibility.
Production Process
Pultrusion Profile Equipment
Fiberglass placed on a shelf
Profile mold debugging
Profile cutting
Profile punching
Profile cutting details control
Profile inspection
Profile packaging
