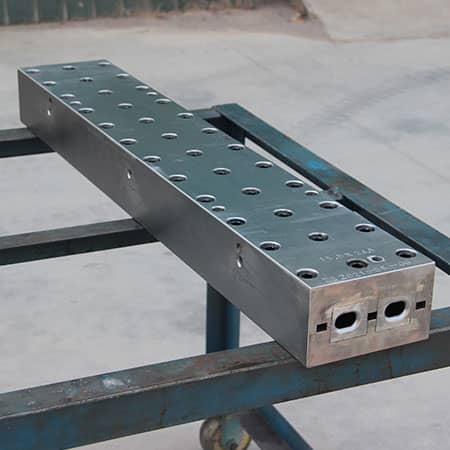

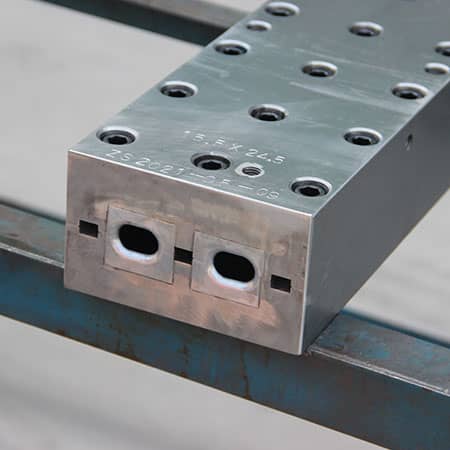

FRP Oval Rod Pultrusion Mould: High-Precision Dies for High-Strength Profiles
Upgrade your composite production line with a precision-built FRP Oval Rod Pultrusion Mould. Built from Cr12/H13 tool steel with a mirror-polished cavity and HRC 60 hardness, it delivers outstanding wear resistance for electrical and industrial-grade profiles.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Engineered Tooling for Industrial-Grade Oval Rod Profiles
As of 2026, oval FRP rods are seeing growing demand in specialized uses such as high-voltage insulators, tool handles, and ergonomic structural supports. Our FRP Oval Rod Pultrusion Mould is a high-precision die built to manage the distinct resin-flow behavior of non-circular solid profiles. At Guangdong Haikuo, oval dies are engineered with optimized internal thermodynamics for uniform curing and void-free cores, yielding profiles with excellent bending strength and surface finish.
1. How Oval Rod Pultrusion Works
Producing an oval rod takes more than an elliptical cavity alone — it requires controlling transverse stress as the resin transitions from liquid to solid composite:
- Fiber Distribution Logic: An oval cross-section inherently puts uneven tension across the rovings. Our dies use custom pre-former plates that keep glass fiber density consistent along both the major and minor axes.
- Zonal Temperature Control: Because the oval rod is solid, the exothermic heat released while curing has to be managed carefully. Our dies use multi-stage heating zones to guard against “core cracking” at the rod’s center.
- Tapered Compaction: The die’s entry is CNC-machined with a precise lead-in taper that builds up pressure gradually, driving out air bubbles and ensuring a dense, void-free matrix.
2. Material Grades and Surface Finishing
Solid rod manufacturing runs at high volume and is highly abrasive on tooling, so we rely on premium metallurgy to ensure a long service life:
- Cr12 / Cr12MoV: An industry-standard choice for glass fiber production, delivering excellent hardness (HRC 58-62) and abrasion resistance.
- H13 Tool Steel: Suited to high-speed production or epoxy-based resin systems where thermal-fatigue resistance and toughness matter most.
- Mirror Polishing (Ra 0.012): The cavity interior is mirror-polished and plated with 0.05mm of hard chrome. The resulting ultra-smooth surface cuts pulling friction by 25%, greatly reducing the risk of surface “fuzzing.”
3. FRP Oval Rod Mould — Technical Parameters
| Engineering Specification | Haikuo Standard Value | Industrial Significance |
|---|---|---|
| Profile Specification | 15.5mm ~ 24.5mm (Customizable) | Optimized for insulation and handles. |
| Cavity Material | Cr12 / H13 / 38CrMoAI | Exceptional wear & heat resistance. |
| Cavity Hardness | HRC 55 – 62 | Immune to fiber-induced erosion. |
| Surface Smoothness | Ra 0.025 ~ 0.012 | Ensures a high-gloss, low-friction finish. |
| Straightness | < 0.02 mm / meter | Critical for precision mechanical parts. |
| Plating Thickness | 0.04 – 0.06 mm | Industrial-grade chrome protection layer. |
4. Optimized Performance Factors
- Resin Consistency: Compatible with Unsaturated Polyester, Vinyl Ester, and Polyurethane systems, the mould handles a wide range of chemical exotherms.
- High Pulling Speeds: The ultra-low friction of our chrome-plated cavities allows for pulling speeds up to 1.2 m/min, maximizing daily output.
- Structural Balance: Designed to accommodate up to 80% longitudinal roving content, ensuring maximum tensile strength for structural applications.
10 Professional FAQs: Oval Rod Mould Engineering
Q1: “Can the ovality ratio (major vs. minor axis) be customized?”
A: Yes. We can machine the cavity to any elliptical ratio required for your specific ergonomic or mechanical design.
Q2: “What is the expected lifespan of a Cr12 oval rod mould?”
A: With proper maintenance and mirror-finish chrome plating, you can expect between 100,000 and 150,000 meters of production.
Q3: “How do you prevent ‘core cracking’ in thick oval rods?”
A: This is managed through precision multi-zone heating that controls the curing speed from the outer surface to the core, preventing thermal stress build-up.
Q4: “Is carbon fiber compatible with this mould?”
A: Yes, but for carbon fiber, we recommend H13 steel with specialized nitriding or DLC coating to handle the specific fiber properties.
Q5: “Does the mould come with matched pre-former plates?”
A: Yes. Every oval rod mould includes a set of stainless steel pre-formers to ensure fibers are perfectly aligned before entering the heated zone.
Q6: “Why is the straightness tolerance so tight (0.02mm)?”
A: Precision is key for rods used in electrical switchgear or automated machinery where any bowing can cause mechanical failure.
Q7: “Can I use the same die for both Polyester and Vinyl Ester resins?”
A: Yes. The hard chrome surface is chemically inert and highly resistant to both resin systems.
Q8: “What is the typical pulling speed for a 20mm oval rod?”
A: Depending on the resin system, speeds typically range from 0.5 to 1.0 meters per minute.
Q9: “How do I clean resin residue from the elliptical cavity?”
A: Our Ra 0.012 finish makes cleaning easy. We recommend using brass scrapers while the mould is warm followed by a light solvent wipe.
Q10: “Do you offer technical consultation for heating rod placement?”
A: Yes. Along with the mould, we provide a recommended heating configuration to ensure optimal curing across the elliptical profile.
Expert Precision Tooling Consultation
Scale up your profile production with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our engineering team is a world leader in high-precision FRP Pultrusion Moulds.
Get a technical quote for your oval die:
- Lead Engineering Consultant: Helena Wang
- Technical Engineering Email: [email protected]
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | oval rod runs requiring maximum tool life and dimensional stability | Standard-volume oval rod production | Low-volume prototyping or trial runs of oval rod |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for FRP Oval Rod Pultrusion Mould: Precision Dies for High-Strength Profiles?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of FRP Oval Rod Pultrusion Mould: Precision Dies for High-Strength Profiles. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent oval rod geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on FRP Oval Rod Pultrusion Mould: Precision Dies for High-Strength Profiles?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the oval rod shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with FRP Oval Rod Pultrusion Mould: Precision Dies for High-Strength Profiles?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can FRP Oval Rod Pultrusion Mould: Precision Dies for High-Strength Profiles be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is FRP Oval Rod Pultrusion Mould: Precision Dies for High-Strength Profiles compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
