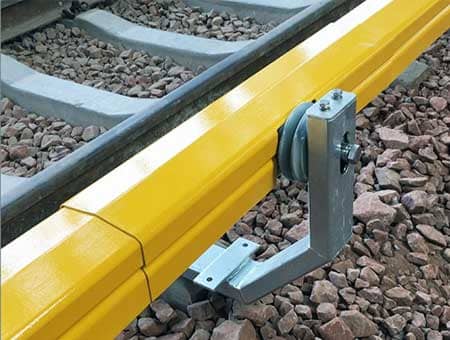

Installing an FRP Cable Protection System
Installing an FRP Cable Protection System
An FRP cable protection system is a cable management solution built primarily from fiber reinforced plastic (FRP). It offers high strength, corrosion resistance, light weight, and simple installation and upkeep. This type of system suits a wide range of cables, including power cables, communication cables, and optical cables.
What Makes Up an FRP Cable Protection System
An FRP cable protection system is built from these main components:
FRP cable trays: the system’s foundation, supporting and protecting the cables. They come in several shapes and sizes — ladder type, trough type, tray type, and others — and connect to each other with bolts or couplers.
FRP cable covers: fitted over the trays to keep dust, water, fire, and other outside factors away from the cables. These attach using clips or screws.
FRP cable brackets: mount the trays and covers to walls, ceilings, floors, or other structures. They’re available in several forms, such as angle type, channel type, and U type, and are fixed in place with bolts or anchors.
FRP cable accessories: used to connect, bend, branch, seal, or otherwise secure the trays and covers. This category covers elbows, tees, crosses, reducers, end caps, connectors, clamps, and similar fittings.
How to Install an FRP Cable Protection System
Installing an FRP cable protection system generally follows these steps:
Gather the tools and materials the installation calls for, such as a drill, wrench, hammer, level, tape measure, and marker.
Verify the quality and quantity of the FRP trays, covers, brackets, and accessories against the design drawings and specifications.
Mark the position and height of each FRP cable bracket on the wall, ceiling, or floor according to the layout plan.
Drill holes at the marked positions and insert bolts or anchors.
Mount the FRP cable brackets on the bolts or anchors, then adjust until they’re level and properly aligned.
Join the FRP cable trays to one another with bolts or couplers, following the planned route.
Lay the cables into the trays, arranging them neatly and evenly.
Attach the FRP cable accessories to the trays and covers as the design specifies.
Secure the FRP cable covers onto the trays using clips or screws.
Inspect the finished installation for quality and safety, making any adjustments or corrections needed.
Engineering Standards & Project ROI Insights
| Project Factor | FRP Cable Protection System | Steel Cable Tray | PVC Conduit |
|---|---|---|---|
| Installation Method | Bolted/clipped, no welding | Often welded or bolted, heavier | Bolted/glued, lightweight |
| Corrosion Resistance | Total immunity | Rusts, needs coating | Resistant, but degrades in UV/heat |
| Weight (handling during install) | Light, easy to position | Heavy | Light |
| Suitability for High-Strength/Outdoor Runs | High strength, weather-stable | Strong but corrodes outdoors | Lower strength for long outdoor spans |
Project Implementation FAQ
Q1: What are the main components of an FRP cable protection system?
Answer: Core components include FRP cable trays (ladder type, trough type, and other tray types) that support and protect various cable types such as power, communication, and optical cables.
Q2: Does installing an FRP cable protection system require welding?
Answer: No, sections are typically joined using bolted or clipped connections rather than welding, simplifying installation compared to some steel tray systems.
Q3: What cable types can be run through an FRP cable protection system?
Answer: Power cables, communication cables, and optical cables are all commonly routed through FRP cable protection systems.
Q4: Why choose FRP over steel for cable protection in corrosive environments?
Answer: FRP’s corrosion resistance eliminates the coating maintenance steel cable trays need in humid, chemical, or outdoor environments, reducing long-term upkeep.
Q5: Is FRP cable protection suitable for both indoor and outdoor cable runs?
Answer: Yes, its combination of high strength, light weight, and weather resistance makes it suitable for both indoor facility runs and exposed outdoor cable routing.
