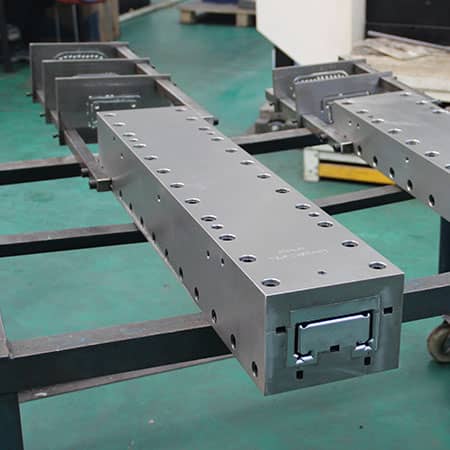

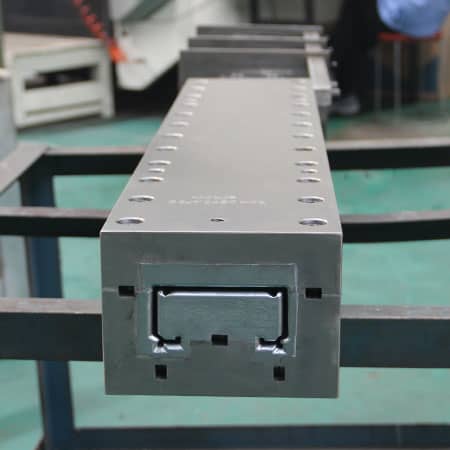

Fiberglass Channel Pultrusion Die: Precision Tooling for C-Channel Sections
Our precision 100*47mm Fiberglass Channels Pultrusion Die is built to raise the bar on structural FRP output. It is machined from aerospace-grade Cr12/H13 steel, finished with a mirror-polish chrome plating, and hardened to HRC 60 for outstanding wear resistance.
Executive standard
Straightness: 0.02mm Smoothness: Ra=0.025~0.012 Cavity surface hardness: < 0.02mm Boundary tolerances: ±0.3mm Plating thickness: 0.04-0.05mm Provide Customized Services
Why C-Channel Dies Underpin Structural Composites
Heavy industry and construction projects in 2026 increasingly turn to Fiberglass C-Channels as a non-corroding substitute for steel beams. How well those channels perform — their dimensional stability, load capacity, and finish — comes down almost entirely to the precision built into the Pultrusion Die that forms them. A 100*47mm channel die has to manage a tricky fiber transition at the corners where web meets flange. Guangdong Haikuo engineers its dies specifically to avoid “dry spots” and hold wall thickness consistent, so the resulting structural profiles clear international safety codes with room to spare.
1. How Channel Pultrusion Works
Turning out a pultruded channel calls for a careful balance between thermal control and mechanical alignment. Our 100*47mm dies are built around three core principles:
- Corner Reinforcement Logic: A tapered die entrance compresses the fabric mats specifically into the 90-degree corners of the C-channel, heading off structural weakness in those high-stress zones.
- Differential Heating Zones: Because the 47mm flanges and 100mm web can cure at different rates given their orientation, the dies carry localized heating controls that keep the profile from warping or twisting.
- Hydraulic Sealing: Precision grinding lets the mould withstand the substantial internal expansion pressure generated as the resin shifts from liquid to solid, keeping the composite dense and void-free.
2. Material Choice & Surface Engineering
Continuous runs of structural FRP profile are highly abrasive on tooling. To hit a 50,000+ meter service life, we rely on premium metallurgy:
- Cr12 / Cr12MoV: A high-carbon steel that, after vacuum heat treatment, strikes the right balance of toughness and surface hardness (HRC 58-62).
- H13 Tool Steel: The go-to standard for high-performance pultrusion, particularly when Vinyl Ester or Polyurethane resins are involved.
- Mirror Polishing (Ra 0.012): A mirror-finish internal cavity cuts pulling friction, keeps the mold from fouling, and leaves the profile with the high-gloss finish architectural applications demand.
3. Technical Parameters & Execution Standards
| Parameter Specification | Haikuo Standard Value | Industrial Significance |
|---|---|---|
| Channel Dimensions | 100 mm x 47 mm | Standard structural C-channel sizing. |
| Mould Material | Cr12 / H13 / 38CrMoAI | Optimized for abrasion & heat. |
| Cavity Hardness | HRC 55 – 62 | Immune to glass fiber scouring. |
| Surface Smoothness | Ra 0.025 ~ 0.012 | Ensures low pulling force (Friction reduction). |
| Straightness | ≤ 0.02 mm / meter | Critical for long-span structural alignment. |
| Plating Thickness | 0.04 – 0.05 mm | Hard chrome layer for chemical resistance. |
4. Optimized Performance Factors
- Fiber Content Management: Designed to accommodate up to 70% glass content for maximum tensile strength in structural beams.
- Resin Compatibility: Fully compatible with Polyester, Vinyl Ester, Epoxy, and Phenolic systems, including fire-retardant additives.
- Speed Optimization: The ultra-smooth cavity allows for pultrusion speeds of 0.5 – 1.2 m/min without sacrificing surface quality.
10 Professional FAQs: Fiberglass Channel Die Engineering
Q1: “Can this die be customized for a specific flange angle?”
A: Yes. While 90 degrees is standard, we can customize the die to produce tapered or angled flanges for specialized structural joints.
Q2: “What is the benefit of H13 steel over 40Cr for a channel die?”
A: H13 offers much higher red-hardness and thermal fatigue resistance, making it essential for high-speed runs and resins with high exothermic peaks.
Q3: “How do you prevent ‘resin buildup’ in the corners of the channel die?”
A: Through mirror-polishing and ensuring the hard-chrome plating is perfectly uniform in the corners, which prevents the resin from ‘keying’ into the metal.
Q4: “Does the die include pre-former plates?”
A: Yes. Every structural die we ship comes with a custom-engineered set of pre-former plates to guide the mats into the C-channel shape before entering the die.
Q5: “Can I use the same die for different wall thicknesses?”
A: For channels, the wall thickness is fixed by the cavity. To change thickness, a new die or a modified cavity is required to ensure structural integrity.
Q6: “How do you maintain straightness in a 100mm wide channel?”
A: We use precision-ground guide rails and 4-zone heating to ensure balanced curing, which eliminates internal stresses that cause twisting.
Q7: “Is the chrome plating resistant to acidic resins?”
A: Yes. Our industrial hard chrome is chemically inert and protects the tool steel from the corrosive components of vinyl ester and phenolic resins.
Q8: “What is the typical lead time for a 100*47mm channel die?”
A: Production typically takes 18-22 days, including CNC machining, vacuum heat treatment, and mirror polishing.
Q9: “Do you offer chrome re-plating services for worn dies?”
A: Yes. We can strip, re-polish, and re-plate your existing dies to extend their service life for another 50,000 meters.
Q10: “How do I calculate the resin shrinkage for a new channel design?”
A: Our engineering team uses simulation software to account for the 1-3% shrinkage typical of composite resins, adjusting the die cavity dimensions accordingly.
Structural Tooling Consultation
Empower your infrastructure projects with Guangdong Haikuo Composite Materials Co., Ltd. Led by Helena Wang, our tooling division is the global leader in high-precision FRP Pultrusion Dies.
Get a technical quote for your structural die:
- Tooling Specialist: Helena Wang
- Direct Engineering Email: [email protected]
- Global WhatsApp: +86 189 5198 8522
Tooling Specifications & Engineering Insights
| Die Steel Grade Material | H13 Tool Steel (Premium) | Cr12MoV Die Steel (Standard) | P20 Mold Steel (Economical) |
|---|---|---|---|
| Core Working Lifespan | Excellent (Over 50,000+ meters with fiberglass) | High (Around 30,000 – 40,000 meters) | Moderate (Best for short-run prototyping) |
| Thermal Fatigue Resistance | Ultra-High (Maintains HRC hardness at high temperature) | Moderate (Good for polyester matrices) | Poor (Prone to dimensional wear under continuous PU) |
| Internal Mirror Polish Cap | Perfect (Achieves Ra 0.012 μm easily) | Excellent (Achieves Ra 0.025 μm) | Standard (Achieves Ra 0.040 μm) |
| Best Application Profiles | C-channel runs requiring maximum tool life and dimensional stability | Standard-volume C-channel production | Low-volume prototyping or trial runs of C-channel |
Precision Mold Engineering Q&A
Q1: Why is a 0.04-0.05mm hard chrome plating thickness critical for Fiberglass Channels Pultrusion Die: High-Precision Tooling for C-Channel Profiles?
Answer: Glass fiber rovings and mats are highly abrasive. During continuous pultrusion, the reinforced matrix creates significant scratching friction against the cavity walls of Fiberglass Channels Pultrusion Die: High-Precision Tooling for C-Channel Profiles. A precise 0.04-0.05mm hard chrome layer raises surface micro-hardness and protects the underlying tool steel, extending die lifespan by over 40% while maintaining consistent 100*47mm channel geometry run after run.
Q2: How does internal mirror polishing to Ra 0.012-0.025 μm affect pull force on Fiberglass Channels Pultrusion Die: High-Precision Tooling for C-Channel Profiles?
Answer: A mirror-polished cavity dramatically reduces the dynamic coefficient of friction inside the C-channel shaping channel. Lower friction means the pultrusion machine needs less clamping/traction force to advance the curing composite, which cuts down on line stiction, prevents surface fiber blooming, and reduces energy consumption over long production runs.
Q3: Which steel grade should be specified for high-volume production with Fiberglass Channels Pultrusion Die: High-Precision Tooling for C-Channel Profiles?
Answer: For high-volume, continuous manufacturing, H13 tool steel or Cr12MoV die steel is recommended. H13 delivers the longest working lifespan and best thermal fatigue resistance, while Cr12MoV offers strong performance at a lower cost for standard-volume runs — P20 mold steel remains a cost-effective option for prototyping or short trial batches.
Q4: Can Fiberglass Channels Pultrusion Die: High-Precision Tooling for C-Channel Profiles be customized to non-standard dimensions or OEM specifications?
Answer: Yes. As with all our pultrusion tooling, dimensions, cavity count, and surface treatment can be engineered to your exact drawing or sample — our in-house CNC mold fabrication team supports both standard catalog sizes and fully custom OEM tooling requests.
Q5: Which resin systems is Fiberglass Channels Pultrusion Die: High-Precision Tooling for C-Channel Profiles compatible with?
Answer: The die is compatible with the full range of resin systems used in FRP pultrusion, including unsaturated polyester, vinyl ester, epoxy, and phenolic resins. Let us know your target resin and cure profile and we can confirm the optimal cavity finish and heating zone setup.
Production Process
Engineer mould design
Profile mould debugging
Rough embryo leveling
Mold CNC machining
Mould punching
Surface grinding
Cavity inner wall polishing
Mold chrome
