Solving Complex FRP Profile Problems: Where Your Mold Design Goes Wrong

Past Simple Tubes: Tackling the Engineering Challenges of Complex FRP Profiles

There’s no getting around it: pulling a plain round rod or a basic square tube is straightforward. Ask for a multi-cavity structural profile with wall thicknesses that vary, though, and the simplicity disappears. That’s where many manufacturers run into internal stress cracking, resin-rich patches, or profiles that won’t hold a straight line. At Guangdong Haikuo Composite Materials Co., Ltd, we see these not as material failures, but as failures in how the mold itself was engineered.

The Pultrusion Trap of Thin-to-Thick Transitions

Uneven curing is the biggest hurdle when producing custom FRP structural shapes. Take a profile with a 10mm base and a 3mm flange: the two sections cure at different speeds. Without a pultrusion die built with independent heating zones, the thinner section ends up over-cured and brittle while the thicker one stays under-cured and loses strength. At Guangdong Haikuo, our engineering team relies on thermal simulation to trace precisely how heat travels from the steel into the resin.

Our Approach to Molding ‘Impossible’ Shapes

To keep production running smoothly on our Frp pultrusion machine, every custom die we build goes through a strict, no-compromise manufacturing process:

• Differential Heating Zones: Rather than simply wrapping a heater around a block of steel, we position thermocouples strategically to control the resin’s exothermic reaction, particularly at complex junctions.
• Tapered Entry Geometry: Mold entries are precision-tapered so the glass reinforcement compresses gradually, which prevents fiber breakage in intricate shapes.

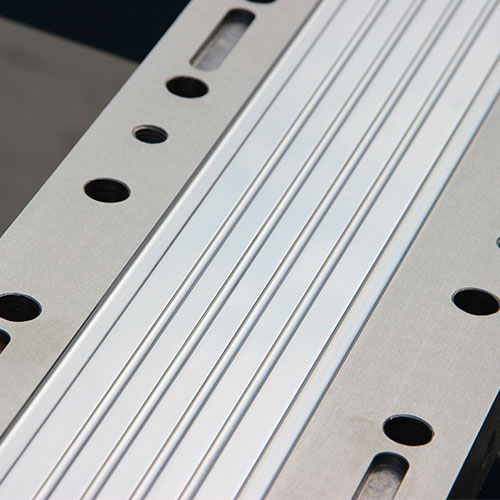

• High-Chrome Mirror Finish: Complex shapes suffer most from friction, so we mirror-polish every internal die surface to cut the pulling force required, which keeps thin-walled sections from tearing.

Case Study: Custom FRP Profiles for 5G Networks

One client recently came to us needing a specialized FRP shroud for 5G antennas that had to be RF-transparent and thin enough to save weight, yet still rigid enough to resist wind loads. Using our precision pultrusion dies together with a custom vinyl ester resin blend, we produced a profile holding a ±0.05mm tolerance, a level of precision traditional composite shops have found difficult to reach.

Why Custom Profiles Are the Future of Composites

“Precision in the mold translates to reliability in the field. If the die isn’t perfect, the profile never will be.”

Ready to Discuss Your Specific Design?

A complicated drawing shouldn’t be what holds your project back. Whether you work in infrastructure, telecommunications, or the chemical industry, Guangdong Haikuo Composite Materials Co., Ltd has the technical know-how to turn your blueprints into high-performance parts.
