Fiberglass Composite Octagonal Tube | High-Strength FRP Profile Manufacturer

Haikuo builds high-strength FRP octagonal tubes engineered for extreme durability, corrosion resistance, and strong structural load capacity. Contact our technical team for custom dimensions and specifications.

Customized service:

Thickness Color Size
Punch Hole To Cut

Online Service Get Quote

Describe Solutions FAQ Contact us

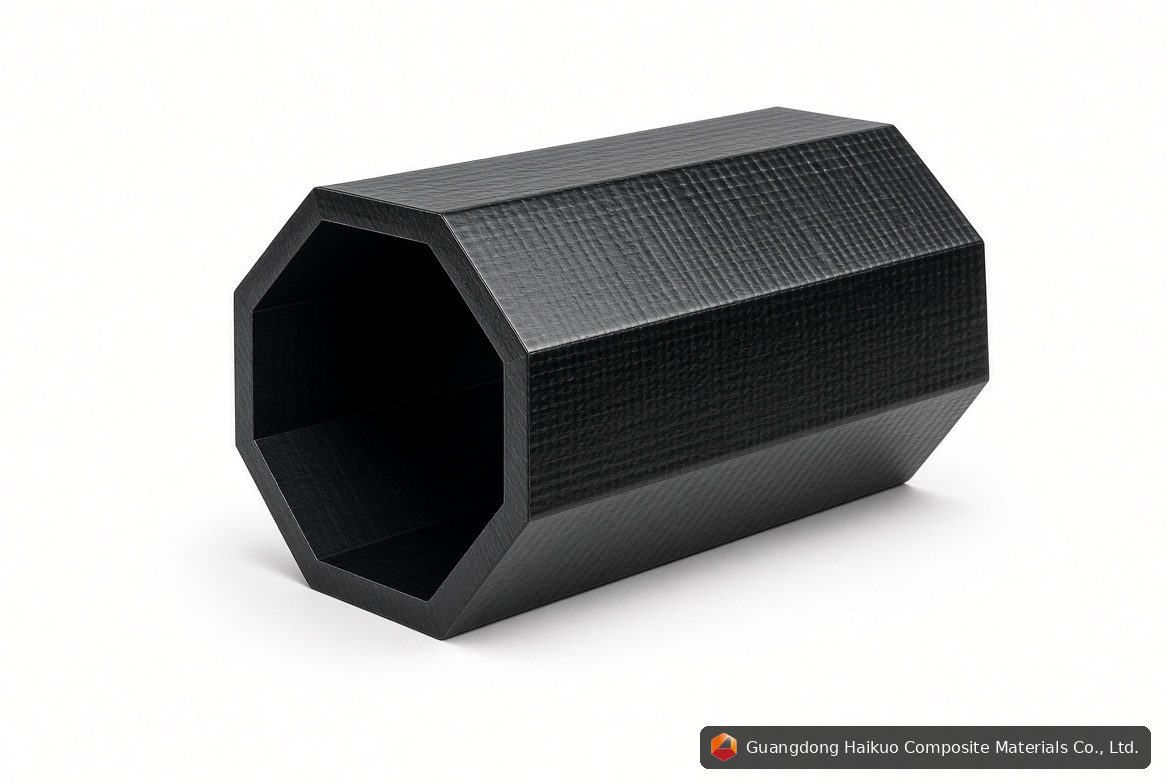

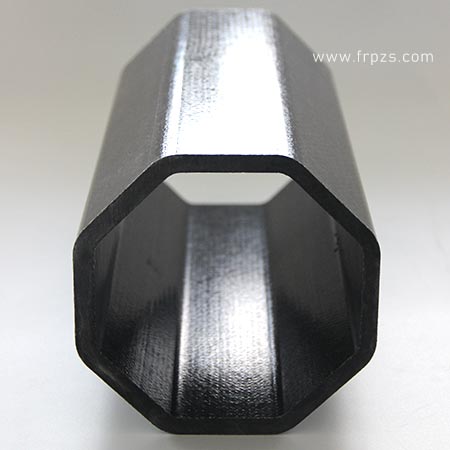

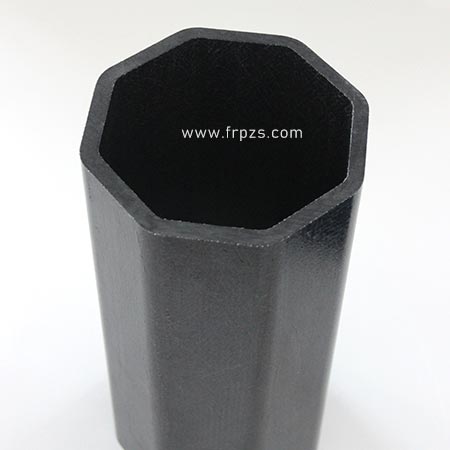

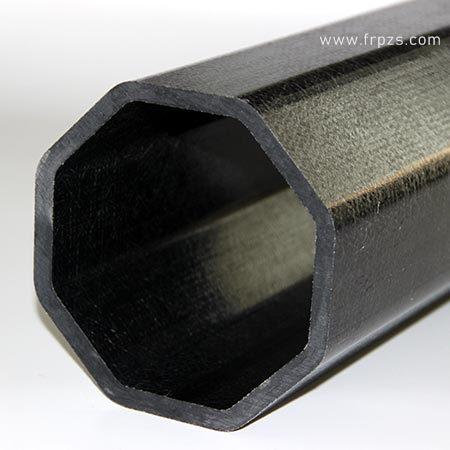

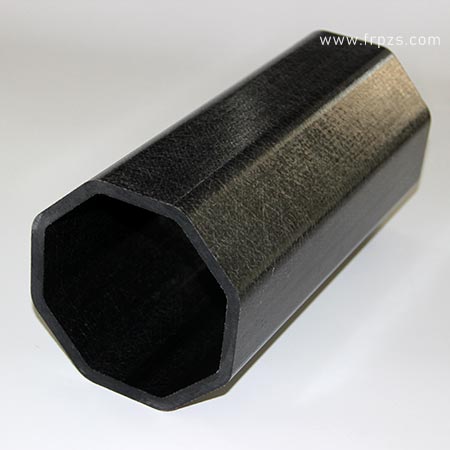

Haikuo’s high-strength FRP (Fiberglass Reinforced Plastic) octagonal tubes are a modern structural composite profile. Made via an advanced pultrusion process, these tubes combine premium fiberglass reinforcement with high-performance thermosetting resin. The eight-sided geometry significantly improves torsional stiffness and multi-directional load distribution, making it well suited to demanding industrial, civil engineering, and infrastructure applications.

Compared to traditional steel, aluminum, or wood, our fiberglass octagonal tubes offer much longer service life in corrosive or chemically aggressive environments. They’re lightweight, non-conductive, and structurally stable across a wide range of temperatures, supporting long-term safety with minimal maintenance.

Advantages of Haikuo FRP Octagonal Tubes

Strong Torsional Rigidity: The eight-sided cross-section resists twisting and bending forces more effectively than standard round or square profiles.
Corrosion & Chemical Resistance: Resistant to rust, rot, saltwater, and acid rain, removing the need for periodic painting or protective coatings.
High Strength-to-Weight Ratio: Matches structural steel-level strength while weighing up to 70% less, significantly cutting transportation and installation costs.
Strong Dielectric Properties: Fully non-conductive and electromagnetically transparent, supporting safety in electrical and radar-sensitive zones.
UV and Thermal Stability: Formulated with UV inhibitors to resist degradation under intense solar radiation and harsh weathering.

Standard Dimensions & Specifications

Below are the standard technical specifications for our pultruded FRP octagonal tubing. Custom sizes, wall thicknesses, resin types (Isophthalic Polyester, Vinyl Ester, or Polyurethane), and color formulations are available to match your exact structural engineering requirements.

Specification	Unit	Value
Outer diameter	mm	25 – 200
Inner diameter	mm	20 – 195
Wall thickness	mm	2.5 – 10
Length	m	1 – 12
Color	–	Customizable
Resin system	–	Polyester, vinyl ester, epoxy, etc.
Fiber type	–	E-glass, S-glass, carbon fiber, etc.
Fiber content	%	50 – 70
Density	g/cm3	1.8 – 2.0
Tensile strength	MPa	300 – 600
Flexural strength	MPa	400 – 800
Modulus of elasticity	GPa	20 – 40
Thermal conductivity	W/mK	0.25 – 0.35

Note: The figures above are for reference only — actual values may vary depending on product design and the manufacturing process.

Applications & Use Cases

Thanks to their mechanical design and cross-sectional strength, Haikuo’s fiberglass octagonal tubes are used extensively across sectors worldwide:

Structural Frameworks: Used for handrails, ladders, platforms, and walkway supports in chemical plants and water treatment facilities.
Utility & Telecommunications: Found in antenna masts, tool handles, cross-arms, and conduit systems for high-voltage power grids.
Agricultural & Marine Infrastructure: Used in aquaculture cage components, fencing systems, and marine decking supports.
Sports & Consumer Goods: Applied in high-performance flagpoles, telescope housings, and sporting equipment frameworks.

Manufacturing & Quality Control

Every FRP octagonal tube goes through rigorous testing in our facility to confirm dimensional accuracy, fiber-to-resin ratio precision, and optimal load-bearing capacity. Our continuous pultrusion technology delivers uniform physical properties from the first meter to the last.

Technical Summary & Engineering Insights

Executive Summary:

Executive Summary: Haikuo high-strength FRP (Fiberglass Reinforced Plastic) octagonal tubes are engineered via advanced continuous pultrusion technology to solve critical structural challenges in corrosive, high-load, and electrically sensitive environments. Featuring a specialized eight-sided cross-section, these composite profiles deliver far superior torsional rigidity, multi-directional load capacity, and optimal shear resistance compared to traditional round or square profiles. Characterized by their exceptional strength-to-weight ratio, complete corrosion immunity, and reliable dielectric properties, Haikuo fiberglass octagonal tubes eliminate structural rust and maintenance costs entirely. Available in custom dimensions, resin formulations (Isophthalic Polyester, Vinyl Ester, Polyurethane), and specific fiber architectures, they serve as the ultimate, long-lasting replacement for structural steel, aluminum, and timber in heavy industrial, marine, chemical processing, and telecommunication infrastructures globally.

Performance Property	Haikuo FRP Octagonal Tube	Structural Steel (A36)	Aluminum (6061-T6)
Torsional Stiffness Index	Excellent (8-sided geometry)	High (Subject to deformation)	Moderate
Corrosion Resistance	Immune (No rust/oxidation)	Poor (Requires coating)	Moderate (Galvanic corrosion risk)
Weight Ratio (Steel = 100%)	Approx. 25% (Ultra-lightweight)	100% (Extremely Heavy)	Approx. 35%
Electrical Insulation	Excellent Dielectric (Non-conductive)	Conductive (Hazardous)	Conductive (Hazardous)
Life Cycle Cost (20+ Years)	Lowest (Zero Maintenance)	Extremely High (Continuous painting)	High (Frequent replacement)

Targeted Product FAQ

Q1: What are the primary mechanical benefits of an octagonal shape in FRP tubing?

A1: The unique eight-sided configuration of our FRP octagonal tube significantly improves multi-directional load distribution and provides superior torsional stiffness compared to standard round tubes. The flat facets allow for more stable bolt connections, tighter interlocking joints, and minimized structural slippage, which is critical when assembling heavy-duty frames with other pultruded fiberglass profiles.

Q2: Can Haikuo customize the resin formulation for specific industrial environments?

A2: Yes, absolutely. Depending on your operational environment, we can customize our fiberglass octagonal tube using Isophthalic Polyester resin for general corrosion protection, Vinyl Ester resin for harsh chemical or acid exposure, or Polyurethane resin for ultra-high structural strength. Specialty fire retardants and custom UV stabilizers are also added during our precise pultrusion sequence to ensure long-term exterior deployment.

Q3: How do fiberglass octagonal tubes perform under extreme high or low temperatures?

A3: Unlike metals that expand or warp, or PVC that becomes brittle in sub-zero climates, our thermosetting composite matrix remains structurally stable from -50°C up to +100°C. This exceptional thermal stability ensures that our structural shapes maintain their exact dimension, structural integrity, and load-bearing profiles in coastal, desert, or sub-arctic engineering environments.

Q4: Are these profiles electromagnetically non-conductive and transparent?

A4: Yes. Our composite profiles are completely non-conductive and dielectric, making them perfect for high-voltage utility cross-arms, electrical enclosures, and handrail installations near heavy machinery. Furthermore, because they are electromagnetically transparent, they do not interfere with cellular frequencies or radar waves, making them heavily utilized in telecommunication tower enclosures.

Q5: How can I order custom wall thicknesses or dimensions for structural engineering?

A5: Haikuo is an advanced, direct-to-factory manufacturer with in-house molding and die customization capabilities. While we stock standard sizes, we can modify the mold thickness, internal reinforcements, and fiber alignment to your precise requirements. Please contact our industrial engineering support team to review our extensive catalog of customized structural components, including comprehensive pultruded fiberglass profiles optimized for industrial applications.
