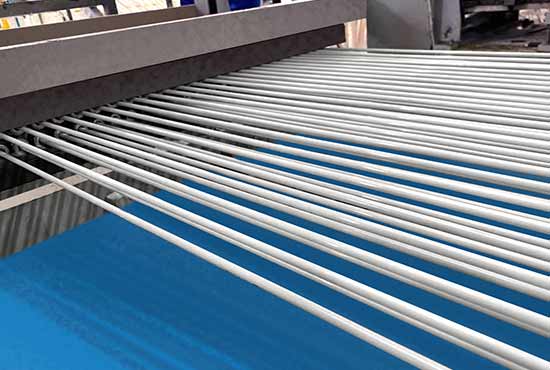

The FRP pultrusion process is a manufacturing technique that produces continuous lengths of fiber reinforced polymer (FRP) composites with constant cross-sections. FRP composites combine fibers — glass or carbon — with a resin matrix, such as polyester or epoxy, to create strong, lightweight structures. The process carries real advantages and trade-offs, and serves applications across a wide range of industries.
Advantages and Disadvantages of FRP Pultrusion
Some advantages of the FRP pultrusion process:
It’s cost-effective and efficient, enabling continuous, automated production of FRP shapes with minimal waste and energy use. It produces consistent, high-quality FRP products with a high strength-to-weight ratio, corrosion resistance, durability, and electrical insulation. It can create complex, customized FRP shapes closely resembling metal profiles used in construction — bars, tubes, channels, angles, and I-beams. And it allows different fiber, resin, and additive combinations to tailor product properties to specific requirements.
Some disadvantages:
It’s limited to producing linear, constant cross-section FRP shapes — it can’t create curved or variable cross-section shapes. It requires significant upfront investment in equipment, like the creel, resin bath, forming die, puller, and cutter. And it can run into technical challenges around fiber alignment, resin curing, temperature control, and quality control.
FRP Pultrusion Process Steps
The basic steps in FRP pultrusion:
Feeding: fiber reinforcements — rovings or mats — are fed from a creel into a guide that aligns them in the desired direction.
Impregnation: the fibers are pulled through a resin bath or impregnator that saturates them with the resin matrix and any additives.
Forming: the wetted fibers are pulled through a heated metal die that shapes them into the desired cross-section and starts the resin curing.
Pulling: the cured FRP product is pulled by a traction device providing the driving force for the process.
Cutting: the FRP product is cut by a saw or cutter into the required length.
Applications of FRP Pultrusion
FRP pultrusion serves many industries:
Construction: FRP pultruded products serve as structural components for buildings, bridges, decks, railings, gratings, roofing, and flooring — offering light weight, high strength, corrosion resistance, fire resistance, and design flexibility.
Electrical: used as electrical insulators for transformers, switchgears, cables, poles, and towers — offering electrical insulation, thermal stability, moisture resistance, and low maintenance.
Automotive: used for vehicle parts like bumpers, spoilers, chassis, body panels, and engine components — offering weight reduction, fuel efficiency, impact resistance, and aesthetic appeal.
Marine: used for boats, ships, submarines, offshore platforms, and pipelines — offering seawater resistance, buoyancy, fatigue resistance, and durability.
Conclusion
FRP pultrusion is a manufacturing technique that produces continuous lengths of fiber reinforced polymer composites with constant cross-sections — carrying real advantages and trade-offs, and serving applications across many industries. It remains a promising technology for creating strong, lightweight structures for a wide range of purposes.
