Manufacturing insight: producing high-performance fiberglass rebar (GFRP) is a careful balance of chemical engineering and mechanical precision. As a premier fiberglass rebar manufacturer, Guangdong Haikuo draws on 20+ years of expertise to turn raw E-glass fibers and high-grade resins into infrastructure-grade reinforcement. Here’s a look at the pultrusion technology that makes our FRP rebar a strong alternative to traditional steel.
1. The Science of Raw Materials
Quality FRP rebar starts at the molecular level. At Guangdong Haikuo, we don’t just use “glass fiber” — we specify E-CR glass (electrical/chemical resistance) rovings to ensure maximum durability in concrete’s alkaline environment.
- High-modulus reinforcement: continuous glass fibers deliver longitudinal tensile strength.
- Matrix selection: we use specialized vinylester resins for projects needing extreme chemical resistance, or high-grade polyesters for general structural use.
- Surface veil and additives: UV stabilizers and internal release agents ensure a smooth, consistent finish and long-term UV stability.
2. The Pultrusion Process, Step by Step
The pultrusion process is a continuous manufacturing method that keeps every centimeter of rebar to the same structural spec.
- Fiber creel loading: hundreds of glass fiber rovings are pulled from the creel under precise tension control.
- Resin impregnation: fibers pass through a resin bath and become fully saturated, ensuring zero voids in the final composite.
- Forming and sand-coating: saturated fibers are shaped through a heated die. For optimal concrete bond strength, we apply a sand-coating or helical wrapping to the rebar surface.
- Automated curing: the rebar passes through multi-zone heating sections, reaching full cross-linking density before being cut to custom lengths.
3. GFRP vs. Steel: A Direct Comparison
| Feature | Guangdong Haikuo GFRP | Standard Carbon Steel |
|---|---|---|
| Corrosion Resistance | Immune to chlorides/alkalis | Prone to rust & spalling |
| Tensile Strength | 2x higher than steel | Industry standard |
| Density (Weight) | 1/4 weight of steel | Heavy (logistics intensive) |
| Electrical Conductivity | Non-conductive (insulator) | Highly conductive |

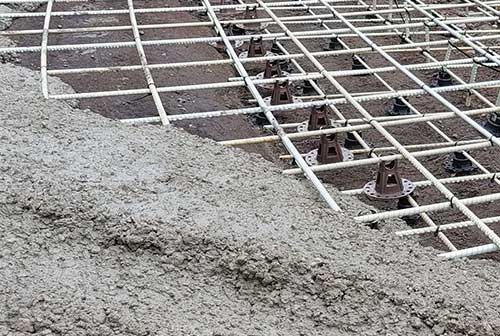

Civil infrastructure: GFRP rebar simplifies installation and eliminates future repair costs.
4. Key Applications
- Infrastructure: bridge decks, barriers, and highway pavements in cold climates where de-icing salts are used.
- Marine and offshore: sea walls, jetties, and dry docks facing constant saltwater corrosion.
- Industrial floors: chemical processing plants and wastewater treatment facilities.

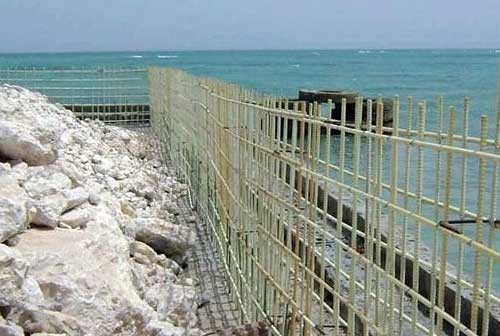

Marine engineering: Haikuo GFRP delivers 100-year durability in saltwater environments.
Professional FAQ: Fiberglass Rebar Manufacturing
Q1: Why choose Guangdong Haikuo as your fiberglass rebar manufacturer?
A: We’re one of the few global manufacturers that also design our own pultrusion machinery. That lets us control every variable of the manufacturing process, ensuring our rebar meets ASTM D7957 standards.
Q2: Can GFRP rebar be bent on-site?
A: No — GFRP is a thermoset material and can’t be bent once cured. We manufacture custom factory-bent shapes (stirrups and corners) based on your project specs.
Q3: How does sand-coating help in concrete?
A: Sand-coating boosts the mechanical bond between rebar and concrete matrix, ensuring load transfer and preventing slippage under high stress.
Q4: Is fiberglass rebar cost-competitive with epoxy-coated steel?
A: Yes — factoring in life cycle cost (LCC), including the elimination of future corrosion repairs, GFRP is significantly more economical over the project’s lifespan.
Q5: What resin works best for extreme alkaline environments?
A: We recommend vinylester resin for the highest level of protection in concrete structures facing severe chemical or marine stress.
Q6: How long does manufacturing lead time take?
A: With our high-speed, multi-line FRP rebar machines, we maintain enough production capacity for both small custom orders and large-scale infrastructure projects worldwide.
Partner With the Leaders in Composite Reinforcement
Guangdong Haikuo Composite Materials Co., Ltd. is committed to delivering world-class FRP solutions. From raw material selection to automated pultrusion, our quality control ensures your next bridge, building, or dock is built to last for generations.
Contact Helena Wang for technical data & custom quotes:
- Email: [email protected]
- WhatsApp: +86 189 5198 8522
- Global Supply: providing ASTM-compliant GFRP rebar to India, USA, Europe, and the Middle East.
