Technical intelligence: Fiber sheet roofing, commonly called FRP (Fiberglass Reinforced Plastic) roofing, has reshaped industrial and agricultural architecture. Unlike traditional metal sheets, which succumb to oxidation, FRP panels are engineered for localized daylighting and strong resistance to chemical vapors. Guangdong Haikuo, a premier FRP pultrusion manufacturer, delivers high-modulus roofing solutions built for longevity in highly corrosive environments.
1. Fiber Sheet Roofing: An Engineering Perspective

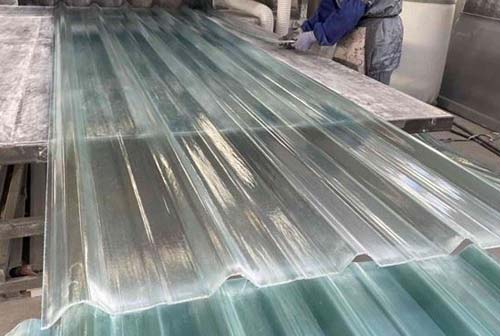

Fiber sheet roofing is a high-tech composite made of a polyester resin matrix reinforced with high-strength glass fibers. During manufacturing, a protective film (typically Melinex) is applied to both sides to prevent fiber blooming and ensure UV stability — the result is a material that holds its flexural modulus and structural integrity far beyond conventional plastics or treated timber.
In industrial settings, these panels are often paired with metal roofing as industrial skylights, delivering meaningful energy savings from natural daylighting while keeping a weather-tight seal.
Technical Specifications of Industrial FRP Roofing
| Engineering Property | Testing Standard | Haikuo FRP Range |
|---|---|---|
| Light Transmission | ASTM D1494 | 65% – 85% (adjustable) |
| Tensile Strength | ASTM D638 | >100 MPa |
| Thermal Expansion | ASTM E228 | 2.2 x 10⁻⁵ cm/cm/°C |
| Temperature Range | Operating limit | -40°C to +120°C |
| Fire Rating | ASTM E84 | Class 1 / Class 2 available |
2. Why Specify FRP Roofing?
- Unmatched corrosion resistance: unlike galvanized steel or aluminum, FRP roofing is immune to electrochemical corrosion — the only viable choice for cooling towers, chemical fertilizer plants, and smelting facilities exposed to acidic or alkaline vapors.
- Optimized light diffusion: fiberglass panels diffuse light rather than allowing direct glare, reducing hot spots in greenhouses and improving conditions in large warehouses.
- High strength-to-weight ratio: significantly lighter than glass or concrete tiles, fiber sheet roofing reduces load on the building’s structural frame, allowing lighter and more cost-effective purlin designs.
- UV and anti-aging technology: panels are formulated with high-concentration UV stabilizers, preventing resin yellowing and maintaining impact strength over a service life that can exceed 20 years.
3. Where It’s Used, and Installation Notes
FRP roofing is remarkably versatile. In agricultural greenhouses, it provides the light spectrum crops need while resisting fertilizers. In marine environments, it withstands saline mist and high humidity without pitting.
Installation tip: because of the material’s thermal expansion, we recommend pre-drilling holes 2-3mm larger than the fastener diameter to allow for movement and prevent stress-cracking at attachment points.
FRP Roofing FAQ
Q1: Is fiber sheet roofing durable enough for hail?
A: High-grade FRP roofing sheets use a high fiber-to-resin ratio, giving excellent impact resistance. Extreme hail can damage any roofing, but industrial FRP panels hold up far better than PVC or thin polycarbonate sheets.
Q2: How does FRP roofing help energy efficiency?
A: Using translucent FRP panels as skylights can cut daytime artificial lighting use by up to 70%, meaningfully lowering electricity costs and carbon emissions.
Q3: Does fiber sheet roofing yellow over time?
A: Standard plastics may yellow, but Haikuo’s premium FRP panels use high-quality polyester resins with integrated UV absorbers. Combined with a surface protection film, yellowing stays minimal across the service life.
Q4: Is FRP roofing fire-resistant?
A: We manufacture specialized fire-retardant FRP sheets meeting Class A or Class B fire ratings under ASTM E84 — essential for power plants and refineries where fire safety compliance is mandatory.
Q5: Can you walk on fiber sheet roofing during maintenance?
A: FRP has high tensile strength, but for safety we always recommend crawling boards or ladders during maintenance — no translucent roofing material should be treated as “fully walkable” without added structural support.
Q6: How do you clean and maintain FRP roof panels?
A: Maintenance is minimal — a wash with pressurized water and mild detergent removes dust and restores original light transmission levels. The non-porous surface also discourages moss and algae growth.
Trust Guangdong Haikuo for Your Roofing Infrastructure
Guangdong Haikuo Composite Materials Co., Ltd. is a global leader in FRP manufacturing. We don’t just sell sheets — we provide engineered solutions, from custom profile matching to specific fire-rating requirements. Our technical team is ready to support your next project.
