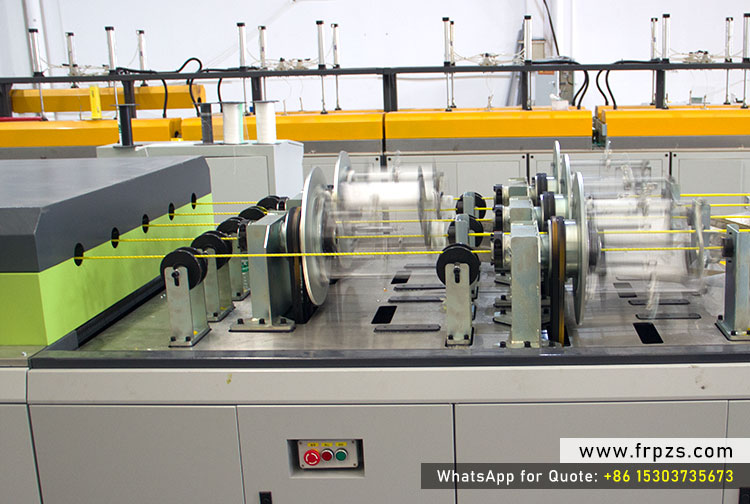

ZSXWJ5 High-Efficiency 5-Line Fiberglass Rebar Production Line
In the competitive composite market, production efficiency and precision decide who wins. Guangdong Haikuo Composite Materials Co., Ltd presents the ZSXWJ5, a state-of-the-art 5-line fiberglass rebar production system built for large-scale industrial output. The machine produces five rebar strands simultaneously, cutting operational costs sharply while holding peak quality.
ZSXWJ5 Comprehensive Technical Specifications
Here’s the detailed technical breakdown for the ZSXWJ5 model — equipment engineered for durability, from high-capacity creels to precision cutting units.
| Section | Parameter | Technical Data | Notes |
|---|---|---|---|
| General Info | Model Number | ZSXWJ5 | Industrial Grade |
| Production Range | Φ4mm – Φ32mm | Versatile sizing | |
| Creel Section | Capacity | 2 Sets / 300 Bobbins | L:6000 W:1000 H:2430mm |
| Winding Unit | Rotating Speed | 0 – 400 r/min | Max Speed: 400 r/min |
| Winding Power | 1.1kW x 5 | High torque stability | |
| Heating Zone | Heating Power | 9kW x 5 (Total 45kW) | L:2250 W:1700 H:1900mm |
| Temp Range | 0 – 250℃ | Precise PID Control | |
| Total Oven Length | 11.25 Meters (5 sets of 2.25m ovens) | ||
| Traction Unit | Traction Speed | 0 – 4000 mm/min | Max Speed: 4m/min |
| Traction Power | 1.5kW x 2 | Stable pulling force | |
| Cutting Section | Conveyor Speed | 20 m/min | Fast clearing system |
Why the ZSXWJ5 Sets the Industry Benchmark
Advanced Multi-Strand Efficiency
Unlike standard single-line machines, the ZSXWJ5’s “one-out-five” design optimizes factory space and labor. Producing five strands of rebar (4mm to 32mm diameters) simultaneously lets manufacturers quintuple output without a proportional jump in energy consumption.
Superior Heating and Curing Control
Curing is the heart of pultrusion. Our 11.25-meter combined heating oven, powered by a 45kW system, keeps the resin perfectly polymerized even at a 4m/min traction speed — resulting in rebar with maximum tensile strength and zero internal voids.
Precision Winding and Sand Coating
The ZSXWJ5’s high-speed winding unit (up to 400 r/min) applies the spiral texture concrete bonding needs with industrial consistency, making our rebar a strong fit for high-stress infrastructure like bridges and subway tunnels.
Get a Quote for ZSXWJ5 Production Line
Interested in upgrading your production capacity with the ZSXWJ5? Contact Helena at Guangdong Haikuo Composite Materials Co., Ltd for technical consulting and global shipping details.
Email: [email protected]
WhatsApp: +86 189 5198 8522
Official Website: frphk.co
