Executive Summary: As industrial infrastructure moves toward maintenance-free specifications, choosing between Wood Polymer Composite (WPC) and Fiberglass Reinforced Plastic (FRP) comes down to structural requirements and atmospheric corrosivity. WPC offers aesthetic value for light-duty outdoor use, while FRP delivers the high-modulus performance structural engineering demands. Guangdong Haikuo, a leader in FRP pultrusion technology, lays out an objective case for why fiberglass is the specified standard in harsh, high-load environments.
1. Matrix Architecture: Thermoplastic vs. Thermoset
The performance gap starts at the molecular level. WPC is typically an extruded blend of wood fibers and thermoplastics (PE, PP, or PVC). Because the plastic matrix stays “meltable,” it holds onto sensitivity to thermal fluctuations and UV degradation, and the organic wood component adds a risk of hygroscopic expansion — moisture working its way in and creating internal stress and potential delamination.
Fiberglass Reinforced Plastic (FRP), pultruded profiles specifically, uses high-performance thermoset resins (polyester, vinylester, or epoxy) that undergo irreversible chemical cross-linking. Combined with continuous E-glass fibers, the result is a composite with much higher Specific Stiffness. Unlike WPC, FRP doesn’t soften under heat or swell when submerged, meeting the rigorous demands of ISO 12944-6 for high-corrosivity environments.

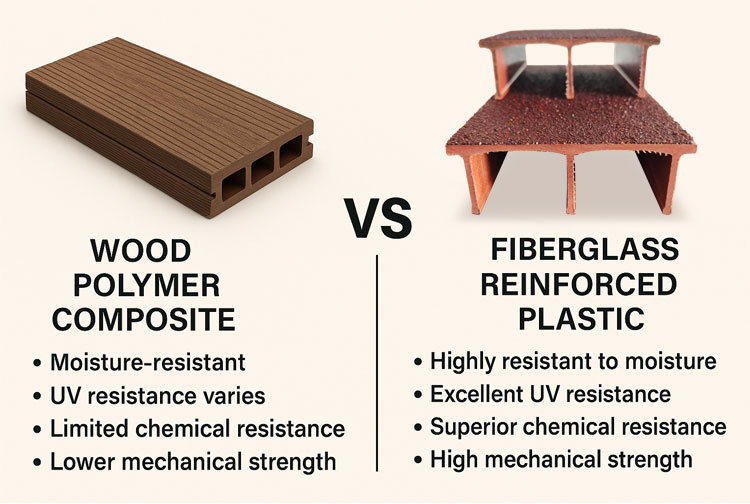

Comparative Engineering Properties: WPC vs. FRP
| Property Metric | Standard Reference | Pultruded FRP | Extruded WPC |
|---|---|---|---|
| Flexural Strength | ASTM D790 | 200 – 450 MPa | 20 – 40 MPa |
| Modulus of Elasticity | ASTM D790 | 17 – 28 GPa | 3 – 6 GPa |
| Creep Resistance | Long-term Loading | Excellent (Structural) | Poor (Non-Structural) |
| Thermal Expansion (CTE) | ASTM E228 | Stable (8.0 x 10⁻⁶/°C) | High (30+ x 10⁻⁶/°C) |
| Surface Hardness | Barcol / Shore D | 50+ Barcol | 50-70 Shore D |
2. Environmental Stress and Durability
Structural Integrity Under UV and Heat
In high-exposure desert or high-altitude environments, UV radiation catalyzes “polymer scission” in WPC, leading to brittleness and color fading. FRP structural profiles manufactured by Haikuo carry a dual-defense system — UV-inhibited resin plus a synthetic surface veil — that keeps structural fibers protected from photo-oxidation for decades.
Chemical Inertness in Industrial Settings
Chemical processing or wastewater treatment environments regularly expose materials to sulfuric acid, caustic soda, and chlorine. WPC’s wood fibers can act as a wick, drawing chemicals into the material’s core. FRP’s advantage lies in chemical-grade resin systems that form an impermeable barrier — the reason FRP is the standard for cable support systems, grating, and cooling tower structures where chemical resilience is non-negotiable.
3. Life Cycle Cost and Structural Sustainability
Engineers have to distinguish “initial cost” from “total value.” WPC often gets picked for its lower entry price in residential decking, but in industrial applications, the Total Cost of Ownership (TCO) favors FRP. With a service life frequently exceeding 50 years and zero need for painting or structural reinforcement, FRP delivers significantly higher ROI for infrastructure projects.
Professional Engineering FAQ: WPC vs. FRP
Q1: Why is FRP considered “structural” while WPC is “decorative”?
A: It comes down to Tensile Modulus. FRP’s continuous fiber reinforcement carries heavy bridge or platform loads with minimal deflection. WPC lacks continuous reinforcement and is prone to “creep” (sagging under its own weight), making it unsuitable for spans without significant substructure support.
Q2: How does moisture absorption affect these materials over 20 years?
A: WPC typically absorbs 1% to 3% water, which can lead to freeze-thaw damage in cold climates. High-quality pultruded FRP absorbs under 0.2%, staying dimensionally stable even in permanent marine submersion.
Q3: Which material has better fire retardancy for industrial use?
A: FRP can be engineered with specialized additives to meet ASTM E84 Class 1 fire ratings. WPC, being thermoplastic-based, has a lower melting point and adds more fuel to a fire unless heavily treated with expensive additives.
Q4: Is FRP more difficult to install than WPC?
A: Actually, FRP is often easier for large-scale projects — because it’s much stronger, fewer beams cover the same span. It cuts and drills with standard diamond-tipped tools on-site, similar to working with very hard wood.
Q5: How do the two materials handle impact at low temperatures?
A: WPC can turn brittle in sub-zero temperatures as the thermoplastic matrix hardens. FRP holds its mechanical properties across a wide temperature range (-40°C to +80°C), retaining impact strength in arctic or cryogenic environments.
Q6: Is FRP a sustainable choice for green building?
A: Yes — sustainability comes down to longevity. FRP lasts 3-4 times longer than WPC in harsh environments, cutting the need for replacement, logistics, and manufacturing energy over the building’s lifecycle.
