Engineering Insight (2026): An FRP pultrusion machine’s efficiency isn’t measured by speed alone anymore — thermal management and pulling consistency matter just as much. Modern fiberglass pultrusion lines need multi-stage heating zones and high-tonnage hydraulic systems to push fiber volume fraction past 65%, the critical threshold for aerospace and high-voltage utility work.
1. The Mechanical Logic Behind FRP Pultrusion
FRP Pultrusion is a continuous process for making composite profiles with constant cross-sections. Where extrusion pushes material through, pultrusion “pulls” reinforced fibers through a resin bath and a heated forming die, keeping the reinforcement under tension throughout and maximizing the final product’s longitudinal tensile strength.

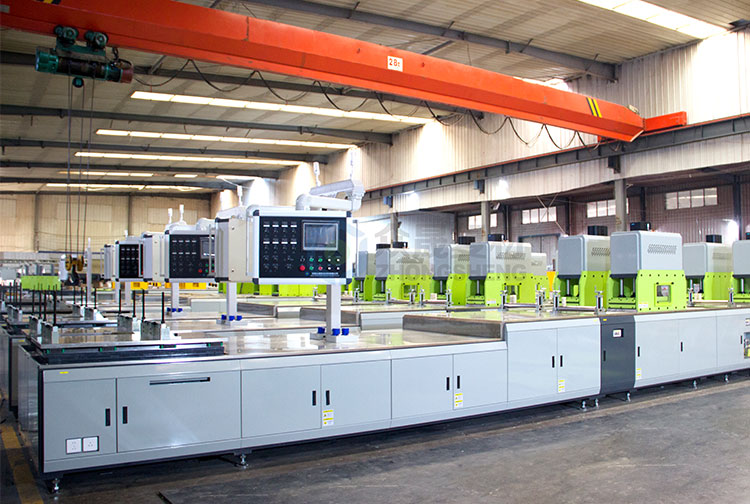

2. What’s Inside a Fiberglass Pultrusion Machine
A professional fiberglass pultrusion line runs through several high-precision stations, each critical to the profile’s structural integrity:
| Component | Technical Function | Haikuo Machine Advantage |
|---|---|---|
| Creel System | Manages glass rovings and mats | Tension-controlled for zero fiber breakage |
| Resin Impregnation | Saturates fibers with polymer | Vacuum-assisted for zero void content |
| Pre-forming Die | Guides fibers into the target shape | Minimizes fiber distortion and friction |
| Heated Forming Die | Cures the resin at precise temps | Multi-zone PLC temperature control |
| Pulling Unit | Caterpillar or Reciprocating Hydraulic | High-tonnage (up to 30T) smooth traction |
3. The Technologies Behind Modern Pultrusion Machines
A. Hydraulic vs. Caterpillar Pullers
Hydraulic pultrusion machines bring immense pulling force, well suited to large structural beams like I-beams and channels. Caterpillar pullers suit continuous, smaller profiles where speed and surface finish matter most. Guangdong Haikuo offers both systems to match specific production goals.
B. Multi-Zone Precision Heating
The curing die is the machine’s core. Modern FRP pultrusion machines run 3-to-5 stage heating zones, letting the resin move from liquid to gel to solid without internal micro-cracking or thermal stress.
C. Automation and IoT Integration
2026’s pultrusion machines are smart machines. Real-time tracking of pulling force, line speed, and die temperature enables predictive maintenance and keeps every meter of profile within ISO 9001 quality standards.
Technical FAQ: Optimizing Pultrusion Lines
Q1: What’s the top speed for a fiberglass pultrusion machine?
A: Speed depends on profile complexity and resin reactivity, generally ranging from 0.2m/min to 1.5m/min. Our high-speed lines use optimized resin catalysts to push pultrusion efficiency further.
Q2: Can a single machine produce different profile shapes?
A: Yes — the machine itself is a versatile platform, and only the pre-forming and forming dies need to change to switch from a round rod to a square tube or a custom C-channel.
Q3: How do you prevent “fiber blooming” during pultrusion?
A: We add a surface veil during pre-forming, which builds a resin-rich surface layer that protects the internal fibers from UV exposure and mechanical abrasion.
Q4: What resin types work with pultrusion machines?
A: Most thermosetting resins — Polyester, Vinyl Ester, Epoxy, and Phenolic. Phenolic pultrusion needs specialized die coatings and temperature profiles because of moisture release during curing.
Q5: How much power does a typical FRP pultrusion line use?
A: Power draw varies with die size and puller type. Modern Haikuo machines use variable frequency drives (VFDs) to cut energy waste by up to 25% during idle phases.
Q6: Why does pulling force consistency matter so much?
A: Inconsistent pulling causes “surges” in the die that lead to surface defects and internal delamination. Our hydraulic machines use closed-loop feedback to hold force stability within ±1%.
