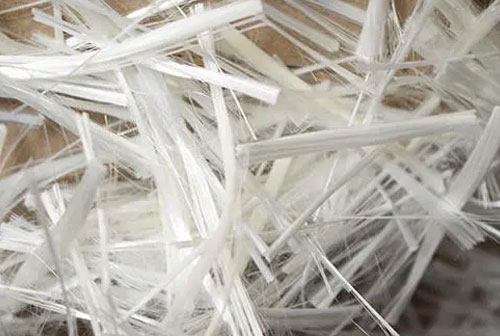

High-tenacity glass fiber rovings carry most of the load in a GFRP composite.
Strength Through Synergy: What Makes GFRP Perform
In composite engineering, Glass Fiber Reinforced Plastics (GFRP) aren’t just a mixture of materials — they’re a synergistic system. GFRP’s exceptional strength, strong enough to replace steel in bridges and aircraft, comes down to the interplay between high-modulus fibers, a protective polymer matrix, and the molecular bond linking the two. Understanding what drives that performance matters for specifying the right composite for 2026’s infrastructure challenges.
1. Four Pillars Behind GFRP’s Mechanical Strength
A. Fiber Properties: The Reinforcing Skeleton
Glass fibers form the composite’s backbone. Their tensile strength runs well above bulk glass because pultrusion minimizes surface defects. Whether the application calls for E-glass in standard uses or S-glass for high-stress aerospace parts, the fiber’s inherent strength sets the ceiling on the final profile’s load capacity.
B. Matrix Properties: The Stress Distributor
While fibers carry the load, the matrix — typically epoxy, polyester, or vinyl ester resin — transfers stress between them. A high-performance matrix shields fibers from abrasion and environmental wear, keeping isolated fiber failures from cascading into structural collapse.

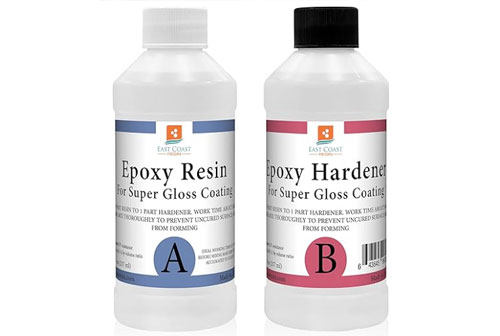

Thermoset resin matrix: critical for stress distribution and chemical resistance in GFRP.
C. The Fiber-Matrix Interface: The Molecular Bridge
Structural integrity is won or lost at the interface. In 2026, silane coupling agents create the chemical bond between inorganic glass and organic resin, optimizing Interfacial Shear Strength (IFSS) so the two materials behave as one unit under load.
D. Manufacturing Precision: The Pultrusion Factor
At Guangdong Haikuo, advanced pultrusion techniques give us mathematical control over fiber orientation. Aligning fibers in unidirectional or cross-ply arrangements lets us tune a GFRP component’s strength to match a project’s specific directional loads.
2. The Variables That Govern Tensile and Flexural Strength
Producing top-quality GFRP means tracking several technical variables:
- Fiber Volume Fraction ($V_f$): a higher fiber-to-resin ratio generally raises strength, up to a sweet spot (typically 60-70%) beyond which the resin can no longer wet the fibers properly.
- Void Content Control: micro-bubbles and voids concentrate stress. Vacuum-assisted manufacturing keeps voids below 1%, sharply improving fatigue resistance.
- Fiber Aspect Ratio: longer, continuous fibers transfer stress far better than short-chopped fibers, which is why pultruded profiles dominate structural beam applications.

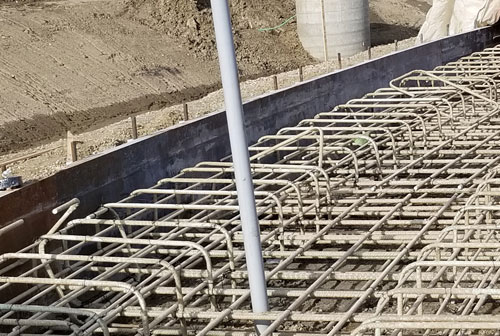

GFRP in infrastructure: high strength-to-weight ratios in service of sustainable construction.
GFRP Engineering FAQ
Q1: How does fiber orientation affect GFRP’s anisotropy?
A: GFRP is inherently anisotropic. Unidirectional (0°) profiles deliver maximum tensile strength along the axis, while 90° transverse strength drops significantly. For complex loading, multi-axial mats (0°/90°/±45°) create quasi-isotropic performance.
Q2: What happens to the fiber-matrix bond as moisture gets in over time?
A: Moisture can work into the interface via capillary action, risking delamination. At Guangdong Haikuo, Vinyl Ester resins with superior hydrolytic stability guard against this, preserving long-term strength in coastal or subsea environments.
Q3: Does GFRP hold its strength at high temperatures?
A: Strength holds up to the resin’s Glass Transition Temperature ($T_g$). For high-heat applications, specialized phenolic or high-$T_g$ epoxy resins extend the safe operating window past 180°C.
Q4: Does glass fiber filament diameter affect strength?
A: Yes — thinner filaments offer more bonding surface area and fewer internal flaws, which boosts localized strength. We typically use filaments in the 13-24 micron range for optimal pultrusion performance.
Q5: How do you predict a custom GFRP profile’s strength?
A: We apply the Rule of Mixtures: $sigma_c = sigma_f V_f + sigma_m V_m$. Adjusting fiber volume ($sigma_f$) and matrix volume ($sigma_m$) lets us predict the composite’s longitudinal strength accurately during design.
Q6: How does Guangdong Haikuo keep voids to a minimum?
A: Precision-controlled resin injection paired with optimized pultrusion speeds. Holding tension and die temperature constant forces air out, yielding a dense, high-integrity cross-section.

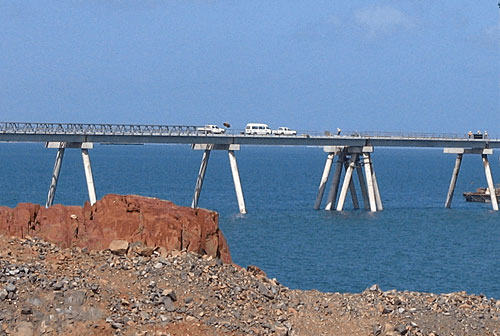

Marine engineering: GFRP’s chemical stability makes it the only real choice for saltwater exposure.
GFRP Manufacturing Expertise at Guangdong Haikuo
As an industrial manufacturing firm based in Huizhou, Guangdong, Guangdong Haikuo Composite Materials Co., Ltd. stands at the forefront of composite material innovation. Our technical team makes sure every pultruded profile — from rebar to custom beams — meets the highest mechanical standards for strength and durability.
