In construction and engineering, FRP square tubes have become a compelling alternative to traditional steel square tubes. Composed of fiberglass fibers embedded in a resin matrix, these composite tubes combine strength, light weight, and corrosion resistance for a wide range of applications. But the strength of FRP square tubes isn’t just a function of the raw materials — the manufacturing process shapes it just as much.
What Shapes the Strength of FRP Square Tubes
Fiber orientation: the direction fiberglass fibers run plays a decisive role in an FRP square tube’s strength. Unidirectional orientation, with fibers aligned along a single axis, delivers maximum strength along that axis, while multidirectional orientation, with fibers running in multiple directions, builds strength across several directions at once.

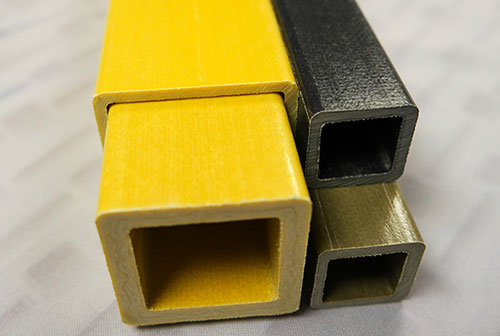

FRP square tube fiber orientation
Resin type: the resin binding the FRP square tube’s matrix shapes its strength properties significantly. Epoxy resins deliver high strength and stiffness for demanding applications, while polyester resins, though less expensive, still offer solid strength and chemical resistance.
Reinforcement type and content: the type and quantity of reinforcement used also matters. Continuous fiberglass reinforcements — rovings or mats — deliver higher strength than chopped strands, and raising the reinforcement content generally lifts strength further, though it can also add to cost and weight.
Curing process: curing transforms the resin from a liquid into a solid matrix, and getting the temperature, pressure, and time right is essential for complete polymerization and maximum strength.

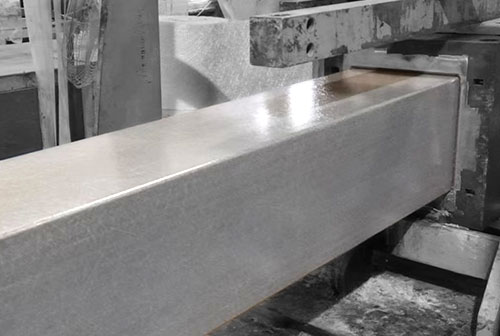

FRP square tube curing process
Quality control: stringent quality control throughout manufacturing — monitoring raw material quality, holding process parameters steady, and inspecting thoroughly at every production stage — is what keeps strength and reliability consistent batch after batch.
How Strength Gets Measured
Tensile strength: how well FRP square tubes withstand forces that stretch or pull the material, measured in units of stress such as psi or MPa.
Flexural strength: also called bend strength, this measures resistance to bending forces, determined by loading the tube’s midpoint and tracking deflection until failure.
Compressive strength: the tube’s ability to withstand forces that compress or crush it, measured by loading along the tube’s length and recording the load at failure.
Conclusion
The strength of FRP square tubes comes down to a complex interplay of factors, starting with high-quality raw materials and extending through every detail of the manufacturing process. Fiber orientation, resin type, reinforcement choices, curing methods, and rigorous quality control all combine to deliver structural integrity, and manufacturers who account for each factor can produce FRP square tubes that meet the toughest construction and engineering requirements.
