Steel sheet piles remain a common choice for retaining walls and excavation support, but they carry real drawbacks worth weighing before specifying them on a project. This article walks through steel sheet piling’s main disadvantages, then surveys five materials that can serve as alternatives.
Where Steel Sheet Piles Struggle

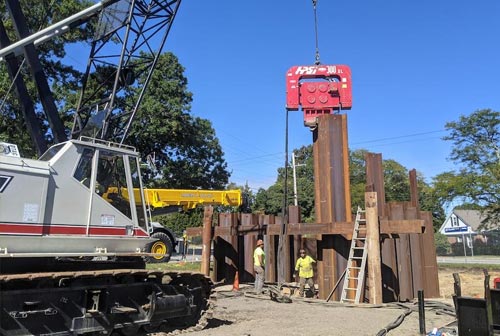

Installation challenges: rocky soils with large boulders or cobbles can make driving steel sheet piles difficult, sometimes requiring specialized equipment or pre-drilling. The driving process itself generates significant noise and vibration, disruptive to nearby communities and environmentally sensitive areas. Installation also requires access to both sides of the excavation, a problem in tight spaces or dense urban settings, and working with heavy machinery to drive the piles carries real safety risks that demand strict protocols and trained crews.
driving steel sheet piles
Environmental Impact
Steel production is energy-intensive and releases greenhouse gases, adding to steel sheet piling’s environmental footprint. Even with protective coatings, the piles can eventually rust and deteriorate, calling for costly maintenance or replacement, and highly saline or corrosive marine environments may need extra protection before steel sheet piles hold up at all.
Design Limitations
Sheet pile walls go up from prefabricated sections, which caps the available shapes and flexibility for complex designs. And while some sheet pile walls serve as permanent structures, many function as temporary installations, needing removal and disposal once their job is done.
Cost
Steel sheet piles carry a relatively high material cost, and installation demands specialized equipment and personnel, pushing the total cost higher still. Corroded piles also need regular maintenance to preserve their integrity and hold off further corrosion, adding to the lifetime cost.
Five Alternatives to Steel Sheet Piles
Which alternative fits best depends on the project’s specific requirements. Here’s a look at five common options:

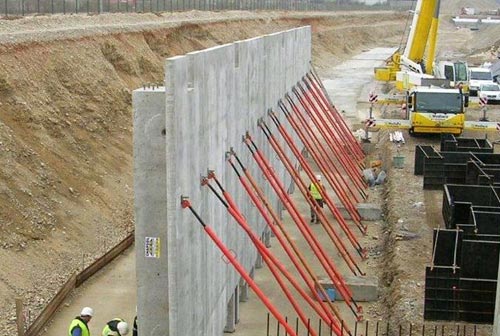

1. Concrete sheet piles: precast concrete sections that hold up better against corrosion than steel and install more quietly, making them workable in marine environments. The tradeoff: concrete sheet piles weigh more and cost more than steel, and installing them can be more difficult.
concrete sheet piles

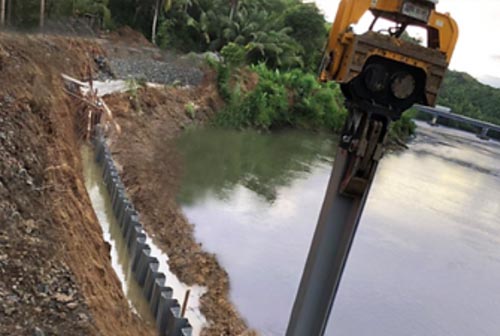

2. Vinyl sheet piles: lightweight and flexible, a good fit for temporary installations or projects sensitive to noise and vibration. They resist corrosion and cut and shape easily, but they can’t match the strength of steel or concrete, so they’re not suited to the most demanding applications.
vinyl sheet piles

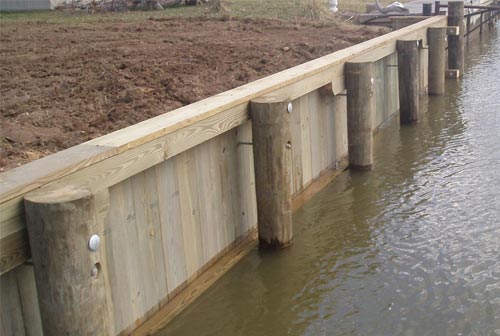

3. Timber sheet piles: a more traditional, renewable, and sustainable option, relatively inexpensive and easy to cut and shape. Their weak point is susceptibility to rot and decay, which calls for regular maintenance.
timber sheet piles

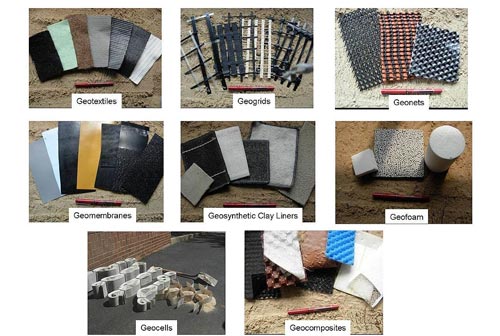

4. Geosynthetic materials: geotextiles and geomembranes, paired with soil or gravel, build retaining walls that are lightweight, flexible, and easy to adapt to irregular shapes. They’re less suited to deep excavations or high loading conditions.
geosynthetic materials

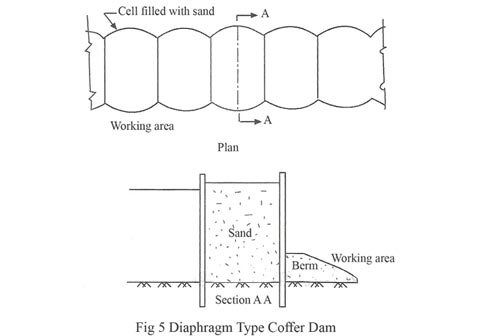

5. Cellular cofferdams: interlocking panels filled with soil or other materials, quick and easy to install across a variety of applications. They’re generally not as strong as the other options and can suffer damage from high water levels or strong currents.
cellular cofferdams
Making the Right Call
The best alternative to steel sheet piles depends on the specific project — site conditions, required strength and durability, budget, and environmental considerations all factor in. Consulting a qualified engineer or geotechnical professional can help pin down the most appropriate solution for your project.
