Comprehensive guide: distinguishing cable management architectures in industrial environments.
The Logic of Cable Support: Why Infrastructure Material Matters
In the complex ecosystem of an industrial facility, the cable management system (CMS) is the vital nervous system. Choosing between a cable tray, cable trunking, or cable ladder isn’t merely an aesthetic choice — it’s a critical engineering decision based on load distribution, thermal ventilation, and environmental exposure. At Guangdong Haikuo Composite Materials Co., Ltd., we’ve engineered FRP (Fiberglass Reinforced Plastic) solutions that solve the fundamental flaw of metallic systems: corrosion-driven structural failure.

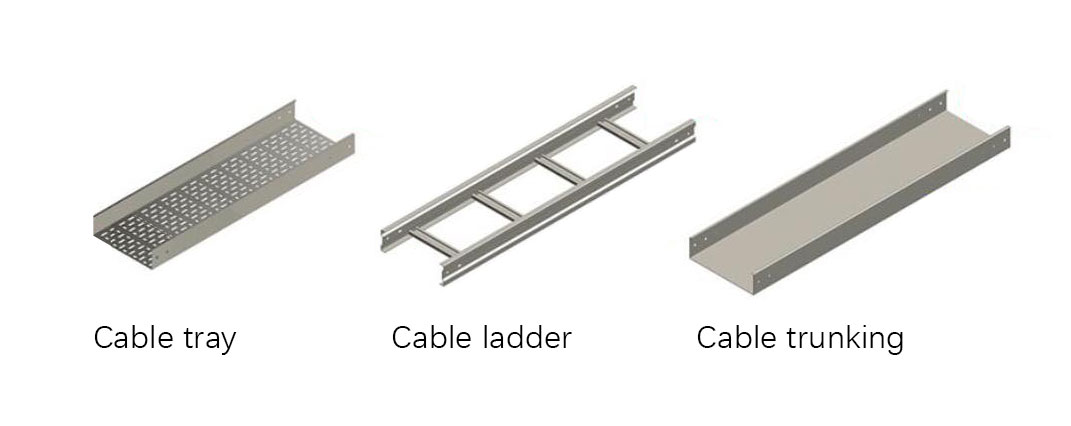

1. Deciphering the Three Core Architectures
A. Cable Tray: The Ventilated Versatile Choice
A cable tray is a semi-open support system, often perforated, designed to balance protection with heat dissipation. It’s the preferred solution for control and instrumentation cables generating moderate heat. Why FRP? In chemical processing zones, metallic trays oxidize rapidly — FRP trays from Haikuo stay inert to acid mists, delivering a 50+ year service life without repainting.
B. Cable Trunking: Maximum Shielding & Dust Protection
Cable trunking is a fully enclosed “box” system, specifically designed for EMI/RFI shielding (when specified) and absolute physical protection against falling debris, dust, and moisture. Why FRP? Our FRP trunking is an electrical insulator, eliminating “step and touch” voltage hazards, and comes manufactured with fire-retardant resins meeting UL 94-V0 standards.
C. Cable Ladder: Heavy-Duty Power Distribution
Resembling a literal ladder, this system features robust side rails and rungs — the heavyweight champion of cable management, engineered for long-span power cable distribution. Why FRP? FRP ladders deliver a high strength-to-weight ratio, holding structural integrity under heavy copper cable loads while running 75% lighter than steel, significantly reducing the “dead load” on building structures.
2. Technical Comparison: Material Performance Matrix
| Feature | Cable Tray (FRP) | Cable Trunking (FRP) | Cable Ladder (FRP) |
|---|---|---|---|
| Primary Use | General Support/Ventilation | Total Enclosure/Safety | High-Volume Power/Long Spans |
| Heat Dissipation | Excellent (Perforated) | Limited (Enclosed) | Superior (Open Air) |
| Mechanical Strength | Moderate to High | Protective | Extreme (High Load) |
| Cable Access | Fast/Easy | Restricted (Requires lid removal) | Instant (Full Access) |

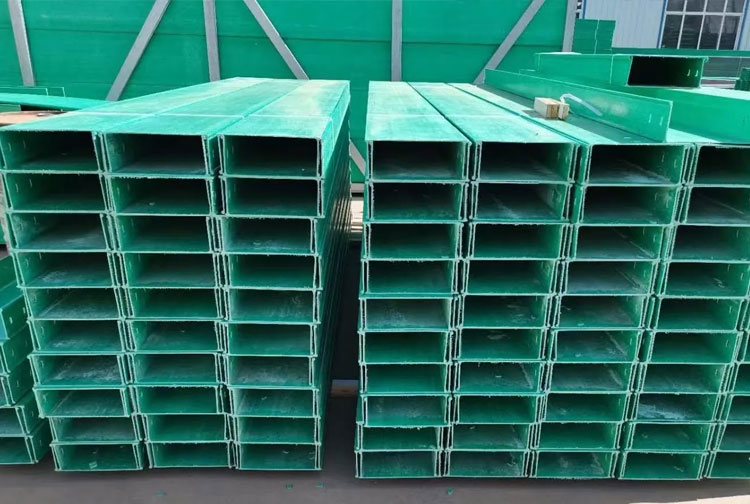

Precision pultruded FRP cable tray: combining light-weight handling with heavy-duty corrosion resistance.
Electrical Engineering FAQ: Choosing the Right CMS
Q1: “In a coastal offshore platform, should I use FRP ladders or trays?”
A: For main power feeders, FRP ladders are superior thanks to their wind-loading resistance and superior drainage of salt-spray. For control wiring, FRP cable trays give more consistent support for smaller-diameter cables.
Q2: “Does FRP cable trunking interfere with wireless signals in a smart factory?”
A: No — unlike steel or aluminum, FRP is magnetically transparent. It doesn’t block Wi-Fi, Bluetooth, or cellular signals, making it ideal for IoT-integrated industrial environments.
Q3: “How does the ‘span length’ of an FRP ladder compare to galvanized steel?”
A: Our high-modulus FRP ladders can span 6 meters or more between supports, similar to steel — and since FRP is lighter, you can often use fewer support brackets, cutting overall installation cost by up to 30%.
Q4: “Can FRP cable management systems be used in underground tunnels?”
A: Yes — FRP is actually the preferred choice for tunnel CMS thanks to its fire-retardant and low-smoke (LSZH) properties. It won’t rust in a tunnel’s high-humidity, damp atmosphere, unlike galvanized steel, which can fail within 5-10 years.
Q5: “Is it difficult to ground (earthing) an FRP system since it is non-conductive?”
A: This is actually a major benefit — FRP systems need no grounding, since they can’t become energized during a fault. That significantly reduces electrical safety hazards and simplifies earthing grid design for the entire facility.
Q6: “What is the maximum temperature an FRP tray can withstand before losing strength?”
A: Our pultruded systems hold structural integrity up to the resin’s Glass Transition Temperature (Tg), typically around 120°C to 150°C. For extreme heat zones, we can use specialized phenolic resins for even higher temperature resistance.
