The Technical Apex: Understanding Fiberglass Pultrusion Tooling
In advanced composite manufacturing, fiberglass pultrusion stands as the most efficient continuous process, but the real “heart” of the operation is the fiberglass pultrusion mold (often called a pultrusion die) — not just a shaping tool, but a high-pressure thermal reactor where fibers and resin become structural reality. At Guangdong Haikuo, we engineer our pultrusion dies to withstand the abrasive nature of glass roving while holding micron-level precision over kilometers of production.
1. Material Science: Why Pultrusion Molds Outperform Conventional Tooling
Standard steel, aluminum, or plastic molds work fine for low-volume casting, but the continuous “pull” of abrasive glass fibers demands a stronger metallurgical approach. Our GRP pultrusion tools are typically forged from high-alloy tool steels like P20, S136, or H13, then treated to reach a specific surface hardness.
Unmatched Strength-to-Weight and Durability
Compared to generic aluminum molds, industrial-grade pultrusion dies deliver a far better strength-to-weight ratio, engineered to resist thermal fatigue — the cracking that comes from repeated heating and cooling cycles. That resilience keeps the fiberglass pultrusion mold holding its geometric profile without deformation, even under the high internal pressures the resin expansion phase generates.
2. Economic Logic: ROI and Production Efficiency
Investing in a high-quality pultrusion die is fundamentally a long-term Return on Investment (ROI) decision. Here’s how professional pultrusion molds stack up against standard alternatives:
| Comparison Metric | Standard Commercial Molds | Haikuo Pultrusion Die (Tier-1) | Industrial Significance |
|---|---|---|---|
| Surface Hardness | HRC 20-30 | HRC 58-62 (after treatment) | Resists fiber abrasion for 10x longer life |
| Internal Finish | Ra 0.8 µm | Ra 0.05 – 0.1 µm (Mirror Finish) | Reduces pull force; prevents resin buildup |
| Thermal Expansion | High (Unpredictable) | Low & Controlled (Isotropic) | Ensures micron-accurate profile dimensions |
| Scrap Rate | 5% – 8% due to warping | Under 0.5% | Significant material and energy savings |
| Life Expectancy | ~5,000 meters | 50,000 – 100,000+ meters | Lower cost-per-meter over project life |

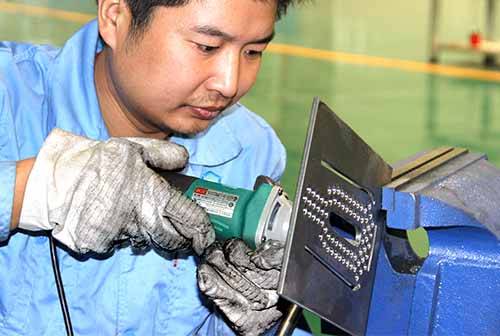

3. Surface Engineering: Mirror Polishing and Chrome Plating
A key advantage of Haikuo’s fiberglass pultrusion molds is our proprietary surface treatment. Every die gets hard chrome plating (typically 0.05-0.08mm thick), which doesn’t just prevent rust — it creates a low-friction “highway” for resin-soaked fibers. A mirror-polished internal surface (Ra 0.05) matters because any micro-scratch can cause “fiber snagging,” leading to production downtime and structural defects in the final FRP profile.
4. Sustainability and Environmental Stewardship
In 2026, industrial sustainability isn’t optional anymore. Modern fiberglass pultrusion molds feed into a “Green Factory” ecosystem in three ways:
- Reduced Energy Consumption: better thermal conductivity in the mold steel allows faster heating and more stable temperature maintenance, cutting the electricity curing ovens need.
- Zero Emission Production: pultrusion dies’ closed-mold nature significantly cuts VOC (Volatile Organic Compound) emissions compared to open-mold hand layup.
- Recyclability: at end of life (after hundreds of kilometers of use), the mold’s high-grade tool steel is 100% recyclable.
10 Hardcore FAQs: Mastering Pultrusion Mold Procurement
Q1: Which steel grade is best for high-volume FRP rebar production?
A: For high-abrasion products like rebar, we recommend Cr12MoV or H13 tool steel — the best balance of toughness and wear resistance under continuous friction.
Q2: How does mold length affect pultrusion speed?
A: Longer molds (900mm to 1200mm, say) allow higher pulling speeds since the profile has more time to cure inside the heated die, though they also raise the total pulling force required.
Q3: Can you produce molds for complex, multi-hollow profiles?
A: Yes. We use precision Wire EDM (Electrical Discharge Machining) and CNC centers to create intricate mandrels for hollow tubes, box sections, and custom window profiles.
Q4: What’s the importance of “Entrance Taper” in mold design?
A: A correctly engineered entry zone prevents fiber breakage and ensures smooth resin squeeze-out. Skip the precision taper, and you risk “dry spots” in your composite profile.
Q5: How do you handle the mold’s cooling zone?
A: While the mold runs primarily heated, we often build internal water-cooling channels at the exit point to stabilize profile geometry before it reaches the puller.
Q6: Why is hard chrome plating essential for pultrusion dies?
A: Chrome carries a very low coefficient of friction. It stops cured resin from sticking to the die walls (mold release) and protects the underlying steel from chemical attack by resins.
Q7: Can your molds handle Basalt Fiber (BFRP) as well as glass fiber?
A: Yes, though basalt is more abrasive than glass — we usually increase the chrome plating thickness or use PVD coating for dies built specifically for basalt pultrusion.
Q8: What maintenance does a pultrusion mold need during a long run?
A: Periodic “purge” runs with cleaning resin help. After a major production cycle, inspect the die for chrome wear and re-polish if Ra levels exceed 0.4 µm.
Q9: Do you provide thermal simulation for new mold designs?
A: Yes — we use finite element analysis (FEA) to ensure heat distribution stays uniform across the die cross-section, preventing uneven curing or “warping” of the profile.
Q10: How does Guangdong Haikuo ensure mold cavity precision?
A: Every cavity gets verified with CMM (Coordinate Measuring Machine) technology, guaranteeing tolerances within ±0.01mm for high-precision industrial applications.
Precision Tooling: Consult with Our Mold Engineers
Picking the right fiberglass pultrusion mold is a critical call that shapes your factory’s production quality and profit margins. At Guangdong Haikuo Composite Materials Co., Ltd., we pair 20 years of metallurgy expertise with advanced CNC capabilities to deliver tooling that lasts longer and performs better.
