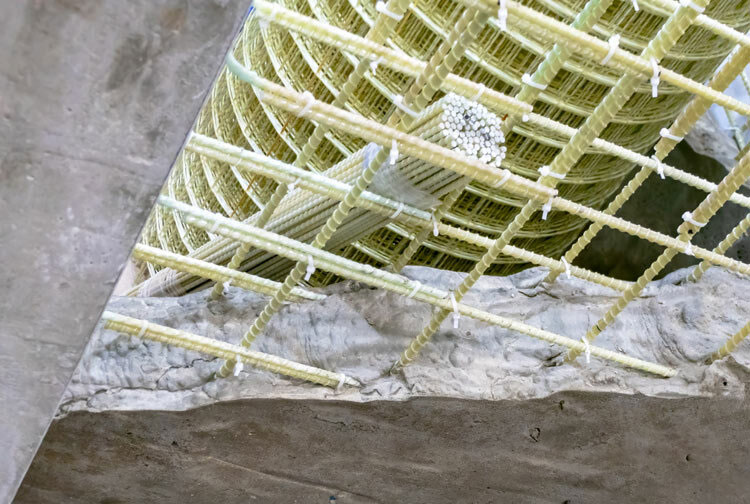

Sustainable infrastructure: high-modulus Glass Fiber-Reinforced Polymer (GFRP) bars.
Decoding GFRP Bars: An Evolution in Reinforcement
In contemporary engineering, Glass Fiber-Reinforced Polymer (GFRP) bars represent a real shift in structural durability. By combining high-strength E-glass or E-CR glass fibers with a resilient thermosetting polymer matrix (typically vinyl ester), GFRP rebar creates a reinforcement medium fundamentally immune to the oxidation issues that plague traditional carbon steel. At Guangdong Haikuo, we engineer our GFRP solutions to solve the “corrosion-spalling-repair” cycle that costs the global construction industry billions annually.
1. Mechanical Superiority and Material Science
Understanding Glass Fiber-Reinforced Polymer bars requires looking at their anisotropic nature. Unlike steel, which is isotropic, GFRP delivers targeted strength in the longitudinal direction, making it ideal for tension-heavy concrete reinforcement.
Key Technical Advantages
- High tensile strength: GFRP bars typically deliver 600-1200 MPa tensile strength, significantly exceeding Grade 60 steel.
- Low density (weight reduction): at roughly 1/4 the weight of steel, GFRP dramatically cuts logistics costs and eliminates the need for heavy lifting machinery on-site, improving worker safety.
- Electromagnetic neutrality: being 100% non-conductive and non-magnetic, GFRP is the required choice for MRI rooms, high-voltage substations, and sensitive electronic manufacturing facilities.
- Thermal compatibility: GFRP’s coefficient of thermal expansion (CTE) is closer to concrete’s than steel’s, reducing internal stresses during seasonal temperature swings.
| Property Metric | Traditional Carbon Steel | Haikuo GFRP Rebar (Tier-1) | Project Impact |
|---|---|---|---|
| Corrosion Resistance | Low (subject to rust) | Total (immune to chlorides) | 100-year design life |
| Tensile Strength | 400 – 500 MPa | 650 – 1100+ MPa | Superior crack control |
| Modulus of Elasticity | 200 GPa | 40 – 60 GPa | Requires specific design code (ACI 440) |
| Handling | Heavy / requires cranes | Ultra-light / manual handling | Fast installation; lower labor cost |
| Electrical Conductivity | Conductive | Insulative | No interference with signals/power |
2. Strategic Applications Across Global Industries
GFRP rebar‘s versatility lets it outperform traditional materials where durability is non-negotiable:
- Marine & coastal infrastructure: seawalls, piers, and dry docks, where saltwater exposure typically expands steel and cracks concrete within 10-15 years.
- Transportation & smart roads: bridge decks and toll booths where de-icing salts are used, and where non-magnetic properties are required for inductive sensors in “smart highway” systems.
- Water treatment & desalination: high-chemical environments where traditional reinforcement would require expensive cathodic protection.
- Soft-eye for tunneling: used in TBM (tunnel boring machine) breakthrough sections, since GFRP can be easily “cut through” by the machine, unlike steel.
3. Design Considerations Worth Knowing
While Glass Fiber-Reinforced Polymer bars are genuinely revolutionary, professional procurement means understanding their specific design constraints:
Elastic modulus: GFRP has a lower modulus than steel — engineers manage this through slightly higher reinforcement ratios or sand-coated surfaces that maximize bond strength with concrete.
Field bending: unlike steel, GFRP is a thermoset material and can’t be bent on-site. All stirrups, bends, and L-bars must be factory-prefabricated by Guangdong Haikuo based on your CAD drawings.
10 Critical FAQs for GFRP Rebar Procurement
Q1: “Is GFRP rebar actually more expensive than steel?”
A: On a per-ton basis, yes. On a per-meter basis, the gap narrows. Factoring in eliminated cathodic protection and 50+ years of zero maintenance, total lifecycle cost is significantly lower.
Q2: “Does GFRP rebar need special concrete mixes?”
A: No — it works perfectly with standard Portland cement. Its alkali-resistant (AR) glass fibers and vinyl ester resin are designed specifically for concrete’s high-pH environment.
Q3: “How does UV exposure affect GFRP bars during storage?”
A: The resin has UV inhibitors, but we recommend covering GFRP rebar with tarps if stored outdoors for more than 3 months to maintain maximum surface integrity.
Q4: “Can GFRP rebar be used in seismic zones?”
A: Yes — its high energy absorption and elastic behavior make it suitable, though specific seismic design codes (like ACI 440.1R) must be followed.
Q5: “What is ‘sand-coating’ and why does it matter?”
A: We apply a layer of fine silica sand to the bar’s surface, creating a mechanical interlock with concrete significantly stronger than smooth or even ribbed bars.
Q6: “Can you provide custom lengths to reduce site waste?”
A: Absolutely — as a direct manufacturer, we can pultrude GFRP bars to any transportable length, cutting the need for on-site cutting.
Q7: “How do I cut GFRP bars on-site?”
A: A standard circular saw or masonry blade is all you need — much faster to cut than steel, and no sparks.
Q8: “What’s the shelf life of GFRP rebar?”
A: Indefinite. Unlike steel, which starts corroding the moment it’s manufactured, GFRP stays structurally stable as long as it’s kept away from extreme UV and high heat.
Q9: “Is GFRP rebar sustainable for ‘green building’ certifications?”
A: Yes — its lower transport emissions (thanks to light weight) and 100-year lifespan contribute significantly to LEED and other sustainability ratings.
Q10: “Does Guangdong Haikuo provide certification for ASTM standards?”
A: Every batch of our GFRP rebar is tested for tensile strength and bond performance, with certificates of compliance provided for your engineering records.
Future-Proof Your Infrastructure With Haikuo
As a global leader in composite reinforcement, Guangdong Haikuo Composite Materials Co., Ltd. provides more than just Glass Fiber-Reinforced Polymer bars — we provide engineering peace of mind. Our team, led by Helena Wang, is ready to help with project volume calculations, technical data sheets, and competitive global shipping quotes.
