Technical overview: in FRP (Fiber Reinforced Polymer) manufacturing, filament winding and pultrusion represent the gold standards for high-strength applications. Both use continuous reinforcement, but they diverge in fiber architecture — filament winding excels at multi-axial stress distribution (ideal for vessels), while pultrusion offers unmatched longitudinal integrity and high-volume cost efficiency. Here’s Guangdong Haikuo’s analytical guide to these two critical manufacturing paths.
1. Filament Winding: Precision in Multiaxial Stress

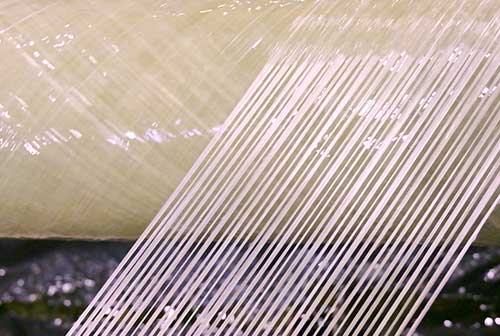

The filament winding process winds continuous rovings onto a rotating mandrel at controlled angles, letting engineers “program” the part’s strength based on expected load.
- Helical and hoop winding: varying the winding angle optimizes the part for internal pressure (hoop stress) or axial tension — the premier choice for pressure vessels and storage tanks.
- High fiber content: tension applied during winding produces high fiber compaction, delivering exceptional stiffness and strength-to-weight ratios.
- Applications: high-pressure oxygen tanks, aerospace fuselage sections, chemical pipes, and heavy-duty drivetrain shafts.
2. Pultrusion: The Industrial Powerhouse for Profiles
Pultrusion is a continuous molding process where fibers are saturated in a resin bath and pulled through a heated stationary die — exiting as a fully cured, solid profile.
- Uninterrupted production: unlike batch-based filament winding, pultrusion runs 24/7 continuously, making it the most cost-effective method for large-scale infrastructure projects.
- Longitudinal dominance: since fibers pull straight, pultruded profiles deliver incredible axial tensile strength, outperforming filament winding in linear applications like beams and rods.
- Applications: structural I-beams, FRP rebar, tool handles, bridge decks, and cable trays.
Engineering Comparison: Pultrusion vs. Filament Winding
| Property Metric | Filament Winding | Pultrusion |
|---|---|---|
| Primary Fiber Orientation | Adjustable (helical/hoop/polar) | Unidirectional (longitudinal) |
| Production Nature | Batch / discontinuous | Continuous / highly automated |
| Part Complexity | Cylindrical, spherical, tapered | Constant cross-section profiles |
| Structural Strength | Superior in torsional/pressure loads | Superior in axial tension/flexure |
| Economies of Scale | Better for custom/complex units | Best for high-volume infrastructure |
3. Strategic Selection: Which Method to Choose?
The choice between these methods hinges on the final component’s stress state:
- Choose filament winding if: you’re designing a part that must contain internal pressure (like a tank) or handle complex torsion — winding fibers at 45° or 90° angles is crucial for these scenarios.
- Choose pultrusion if: you need miles of consistent material with high stiffness in one direction. For beams, handles, and gratings, pultrusion delivers the highest ROI thanks to its speed and minimal labor needs.
Technical FAQ: Filament Winding vs. Pultrusion
Q1: Is pultrusion really weaker than filament winding?
A: Not exactly. In axial tensile strength, pultrusion is often stronger since fibers align perfectly. Filament winding is “stronger” only in that it handles loads from multiple directions (like internal pressure) better than a unidirectional pultruded part.
Q2: Can pultrusion produce curved parts?
A: Standard pultrusion makes straight profiles. “Curved pultrusion” exists but is highly specialized and expensive. For curved or tapered pipes, filament winding is the far more flexible choice.
Q3: Which process gives a better surface finish?
A: Pultrusion typically delivers a smoother, “mirror-like” finish since the resin cures against a polished steel die. Filament wound parts often have a slight “ribbed” texture from fiber tows unless secondary grinding is performed.
Q4: Why is filament winding considered more expensive?
A: It’s a slower, batch-oriented process often requiring a removable mandrel. Cycle time per part runs higher, and equipment setup for complex patterns needs more highly skilled technicians.
Q5: Which method is more common in renewable energy?
A: Both matter — pultrusion is used for wind turbine blade spars and solar panel supports, while filament winding is the industry standard for hydrogen storage tanks and high-pressure fuel lines.
Q6: How does Guangdong Haikuo ensure quality in pultrusion?
A: We use multi-zone precision temperature control in our dies and automated tensioning systems for fiber rovings, ensuring every meter of our FRP profiles meets international ASTM standards.
