Haikuo Innovation: Leveraging CSM for high-performance pultruded structural components.
Reinforcement in More Than One Direction

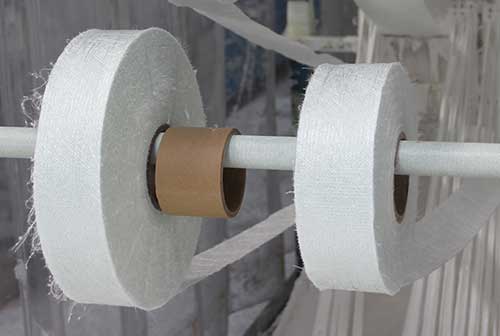

Fibre Reinforced Plastic (FRP) profiles have moved well past the limits of traditional materials. At Guangdong Haikuo, we’ve optimized how Chopped Strand Mat (CSM) — a non-woven mat of randomly oriented short glass fibers — solves a real weakness in unidirectional composites. Rovings deliver longitudinal strength, but CSM is the “binding network” that keeps a profile structurally sound under multi-axial stress.
1. What CSM Actually Does for Performance
Adding CSM to a pultrusion layup isn’t just about cost — it changes the mechanical response in four meaningful ways:
Big Gains in Impact Resistance
Woven fabrics have defined “weak planes,” but CSM’s random fiber orientation creates an isotropic energy-dissipation zone. When a profile takes a sudden hit, the CSM layer spreads that energy across a wider area instead of concentrating it, preventing delamination and shattering.
Better Flexural and Transverse Strength
Standard pultrusion is very strong lengthwise but weak against transverse (side-to-side) splitting. CSM adds the transverse reinforcement needed to handle bending loads and keeps the profile from “zipping” open when bolted or stressed laterally.
Meaningful Weight Savings
Strategic CSM layering can match the structural rigidity of thicker, heavy-weave alternatives — cutting weight by up to 50% compared to traditional metallic-reinforced composites, which lowers both shipping costs and installation labor.
A Better Surface Finish
CSM acts as a protective veil that hides the coarse pattern of the underlying roving, leaving a smooth, resin-rich surface that’s ideal for UV-resistant paint or protective coatings — important for industrial manufacturing applications.
2. Where CSM-Reinforced Profiles Get Used
| Industry Sector | Application Example | The CSM Advantage |
|---|---|---|
| Construction | Beams, trusses, support columns | Prevents longitudinal splitting under heavy torque. |
| Transportation | Truck bodies, boat hulls, bus panels | High shatter resistance for crash safety. |
| Industrial | Conveyor systems, pipes, storage tanks | Smooth internal bore for improved flow and chemical resistance. |
3. Sustainability Benefits
Our CSM increasingly comes from recycled glass streams. Beyond the mechanical benefits, CSM also cuts manufacturing downtime, since it conforms better to complex pultrusion dies than rigid woven fabrics — lowering scrap rates by up to 15%.
Frequently Asked Questions
Is CSM a replacement for unidirectional roving?
No — they work together. Roving handles tension along the length; CSM adds toughness and transverse strength.
Does CSM increase resin consumption?
Yes — CSM typically has a higher resin-to-glass ratio, which actually helps chemical resistance and surface smoothness.
Can CSM-reinforced profiles be used in offshore marine environments?
Yes — the resin-rich surface CSM creates is an excellent barrier against saltwater ingress and osmotic blistering.
Does CSM affect dielectric properties?
No — it maintains high electrical insulation, and its uniform surface actually helps prevent arcing that can occur around exposed coarse fibers.
Why is CSM cheaper than woven fabric?
CSM manufacturing is faster and less energy-intensive than weaving, and chopped strands are more cost-effective to produce.
Can CSM handle extreme temperatures?
Yes — its random orientation manages thermal expansion more uniformly across the profile than woven materials do.
Does CSM make a profile more flexible?
It increases energy absorption (toughness), but overall stiffness still comes down to total fiber volume and resin type.
Is it easier to drill holes in CSM profiles?
Much easier — CSM helps the material resist burring and delamination during drilling and cutting.
Does CSM help with fire retardancy?
Indirectly — it holds a higher concentration of fire-retardant resin right at the surface, where it matters most.
How do I know how much CSM I need?
Our engineering team can calculate the ideal CSM weight (e.g., 300g/m² vs. 450g/m²) based on your project’s load requirements.
