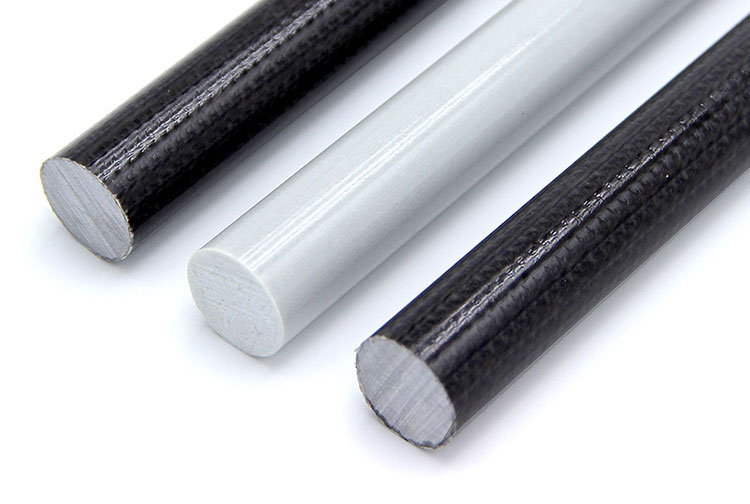

Precision-Engineered Solid Fiberglass Rods (FRP)
When Off-the-Shelf Isn’t Enough
Standard materials often fall short of specific mechanical or environmental demands in modern manufacturing. Custom solid fiberglass rods fill that gap — combining high tensile strength, electromagnetic transparency, and real durability. At Guangdong Haikuo, we go beyond standard shapes and engineer rods calibrated for your exact load-bearing and chemical-resistance needs.
1. What Goes Into a Custom FRP Rod
A solid fiberglass rod is a matrix-bound reinforcement system, and the “custom” part comes from tuning the fiber-to-resin ratio and material chemistry:
- The reinforcement: high-tenacity E-glass, S-glass, or hybrid fibers, selected for specific modulus targets.
- The matrix: epoxy (peak mechanical strength), vinyl ester (acidic environments), or polyester (cost-effective structural use) — chosen to match the operating conditions.
2. What Tailored Pultrusion Delivers
Dimensional Precision and Surface Finish
Custom rods can hold tolerances as tight as ±0.05mm, with surface options including smooth resin finishes, sanded textures for bonding, or polyester veils for extra UV protection.
Tunable Mechanical Properties
Unlike isotropic steel, fiber orientation can be adjusted to match specific stress patterns — whether the application calls for a high flexural modulus (spring-like behavior) or extreme tensile strength for tensioning cables.
Electromagnetic Transparency
Custom fiberglass rods are non-conductive and RF-transparent, making them essential for 5G antenna supports, MRI room reinforcement, and high-voltage insulators, where metal simply isn’t an option.
3. Customization by Sector
| Application | Critical Customization | Why It Matters |
|---|---|---|
| Electrical Utilities | High-dielectric resin | Prevents tracking and flashovers in power lines. |
| Marine Engineering | Vinyl ester matrix | Zero degradation in high-salinity seawater. |
| Aerospace Controls | Carbon-fiber hybrid | Maximizes stiffness while minimizing weight. |
| Sports Equipment | Controlled flexural modulus | Engineers the right “bend” for fishing rods or archery gear. |
4. Our Custom Manufacturing Process
- Consultative design: reviewing your stress-load data and environmental exposure.
- Resin-fiber formulation: selecting the right chemistry for thermal and chemical stability.
- Precision pultrusion: continuous pulling through heated dies for full fiber saturation and consistent cross-sections.
- Quality validation: every batch tested for glass content, Barcol hardness, and dimensional accuracy.
Frequently Asked Questions
Can fiberglass rods come in specific colors?
Yes — pigment goes into the resin matrix throughout the rod, so color won’t chip or peel like paint. RAL or Pantone matching is available.
What’s the maximum length for a custom solid rod?
Pultrusion is continuous, so length is theoretically unlimited. We typically cut to size for shipping, or provide continuous spools for smaller diameters.
Can rods be made resistant to extreme acids?
Yes — high-grade vinyl ester or phenolic resins let rods withstand concentrated chemical exposure in industrial processing plants.
Are custom rods more expensive than stock items?
Unit price is comparable at volume; the main difference is a possible one-time setup fee for non-standard diameters that need a new pultrusion die.
How do custom rods handle sub-zero temperatures?
Very well — unlike many plastics, FRP holds its mechanical properties and stays flexible even at -50°C.
Can a screw thread be added to the end of a solid rod?
FRP shouldn’t be threaded like metal, but the ends can be secondary-machined, or metal threaded inserts bonded in, for secure mechanical fastening.
Are flame-retardant custom rods available?
Yes — halogen-free flame retardants can meet UL94-V0 or ASTM E84 Class A standards.
What diameters are available?
Solid rods from as small as 2mm up to 100mm, with custom dies available for anything in between.
Can you make a hybrid rod combining glass and carbon fiber?
Yes — this is a popular way to get carbon fiber’s stiffness at a lower price point, using a glass fiber core.
What’s the lead time for a custom pultrusion run?
If the die already exists, production can start in 7–10 days. New custom diameters needing a die typically take 3–4 weeks.
