High-Load Custom FRP Square Tubing for Structural Frameworks
Custom FRP Tubing as a Primary Structural Component
Custom fiberglass square tubes (also called FRP square tubing) have moved from alternative material to primary structural component. At Guangdong Haikuo, “custom” means more than adjusting dimensions — it means engineering the fiber layup and resin chemistry to meet specific torsional and compressive load requirements. Whether replacing corroded steel in a chemical plant or building non-conductive supports for 5G telecom, tailored FRP tubing balances durability against efficiency.
1. Why Custom FRP Beats Isotropic Metal
Steel and aluminum square tubes are isotropic — their properties are fixed. Custom fiberglass square tubes are engineered materials that offer:
- Corrosion immunity: naturally resistant to H2S, salt spray, and acidic fumes, with no need for sacrificial coatings.
- Electromagnetic neutrality: unlike metal tubing, FRP doesn’t interfere with wireless signals or radar — essential for modern communication infrastructure.
- Thermal stability: a low coefficient of thermal expansion keeps dimensions accurate from -50°C to +80°C.
- High specific strength: pound for pound, FRP square tubes can outperform steel in tension, cutting the dead weight of the overall structure.
2. Precision Pultrusion Manufacturing
Custom manufacturing relies on precision pultrusion — a continuous pulling process that ensures full fiber saturation and consistent wall thickness.
Tailored Fiber Layups
Adjusting the ratio of longitudinal rovings (for bending strength) to continuous filament mats (for transverse strength) lets the tube handle multi-directional stress without buckling.
Choosing the Right Resin
- Vinyl ester: the benchmark for chemical processing and harsh marine splash zones.
- Fire-retardant polyester: rated for UL94-V0 and ASTM E84 Class A safety requirements.
- Epoxy matrix: for peak mechanical stiffness and high-temperature tolerance in aerospace or automotive test rigs.
3. Comparing the Materials
| Property | Haikuo Custom FRP | Galvanized Steel | Aluminum 6061 |
|---|---|---|---|
| Density (g/cm³) | 1.6–2.0 (ultra-light) | 7.8 (heavy) | 2.7 (moderate) |
| Corrosion Resistance | Extremely high | Poor (requires coating) | Moderate |
| Electrical Conductivity | Non-conductive | High | High |
| Maintenance Cost | Zero (50-year life) | High (periodic painting) | Moderate |
| Ease of Install | High (standard tools) | Low (heavy equipment) | Moderate |
4. Where This Tubing Gets Used
Telecommunications and 5G Base Stations
As 5G/6G networks expand, fiberglass square tubes are a preferred choice for antenna shrouds and support frames thanks to their signal transparency and non-interference with high-frequency bands.
Marine and Offshore Platforms
From dock fendering to offshore handrail systems, FRP tubes hold up under the constant cycle of saltwater spray and UV exposure that destroys aluminum and wood within a few years.
Renewable Energy Infrastructure
Solar array trackers and wind turbine internal ladders use FRP tubing for a lighter framework that reduces torque requirements on motor-driven systems.

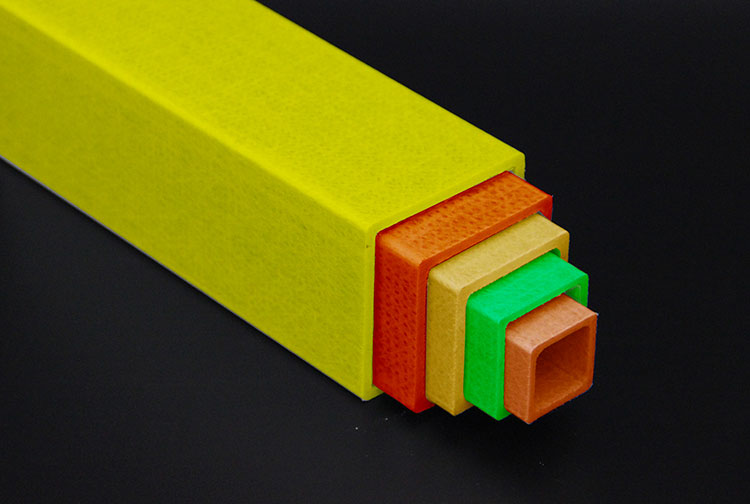

Precision-pigmented FRP tubes for architectural and safety branding.
Frequently Asked Questions
Can FRP square tubes handle high torque?
Standard pultruded tubes are built for longitudinal loads, but the layup can be customized with ±45° fiber mats to significantly boost torsional resistance.
What’s the maximum wall thickness available?
We manufacture wall thicknesses from 2mm up to 25mm+, depending on structural span and load requirements.
How do you connect fiberglass square tubes?
Typically through mechanical fastening (stainless steel bolts) or structural bonding (two-part epoxies). Custom FRP gusset plates are available for corners.
Are these tubes UV-resistant for long-term outdoor use?
Yes — UV stabilizers in the resin, plus a synthetic surface veil applied during pultrusion, protect the core fibers from sunlight-driven fiber blooming.
Can you provide custom colors for safety zones?
Yes — full RAL color matching, with pigment built into the material so it won’t chip or fade like paint.
Can the tube surface get a non-slip texture?
Yes — a gritted finish or textured veil is available for tubing used in handrails or ladder rungs.
How do FRP tubes behave in a fire?
With fire-retardant resin specified, the tubes are self-extinguishing and meet strict flame-spread and smoke-density standards like ASTM E84.
Are special tools needed to cut them on-site?
No — standard carbide-tipped saw blades or diamond blades work well. PPE is recommended for fine glass dust.
Can you manufacture custom dimensions outside the standard catalog?
Yes — for high-volume projects, we design and manufacture custom pultrusion dies to your exact dimensional spec.
What’s the life expectancy in a marine splash zone?
Properly engineered vinyl ester FRP tubes are rated for 50+ years in marine environments, well beyond wood or galvanized steel.
Strategic Structural Partnership
Design your next project with Guangdong Haikuo Composite Materials Co., Ltd. Our team, led by Helena Wang, provides end-to-end support for custom fiberglass square tubes worldwide.
- Technical Consultant: Helena Wang
- Direct Engineering Inquiry: [email protected]
- Global WhatsApp: +86 189 5198 8522
